Atlas 9KBPX 9,000lb 2 Post Vehicle Lift

Atlas 9KBPX 9,000 lb Baseplate Two-Post Auto Lift

Overview

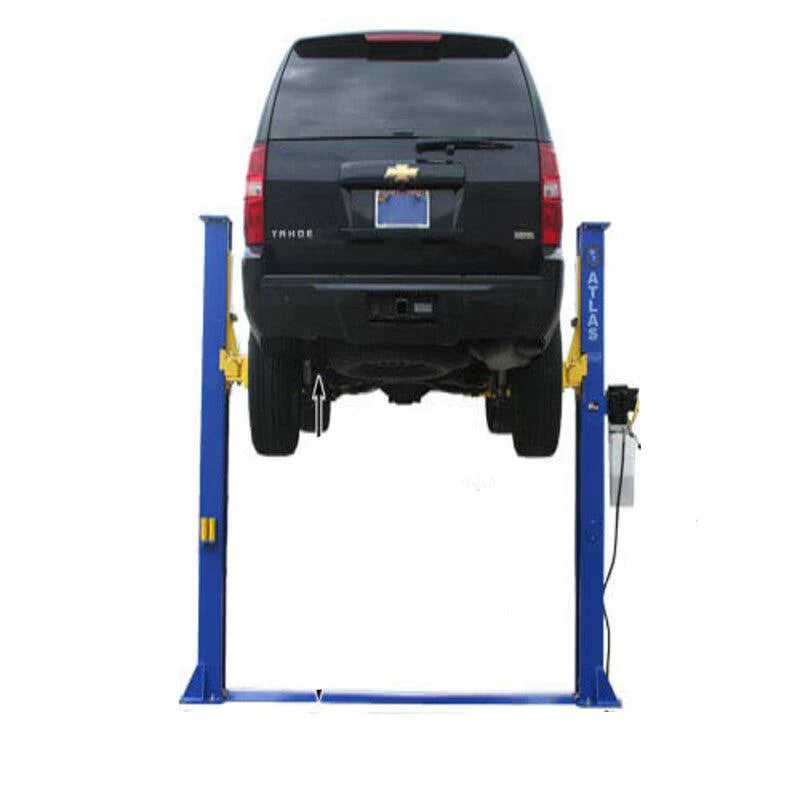

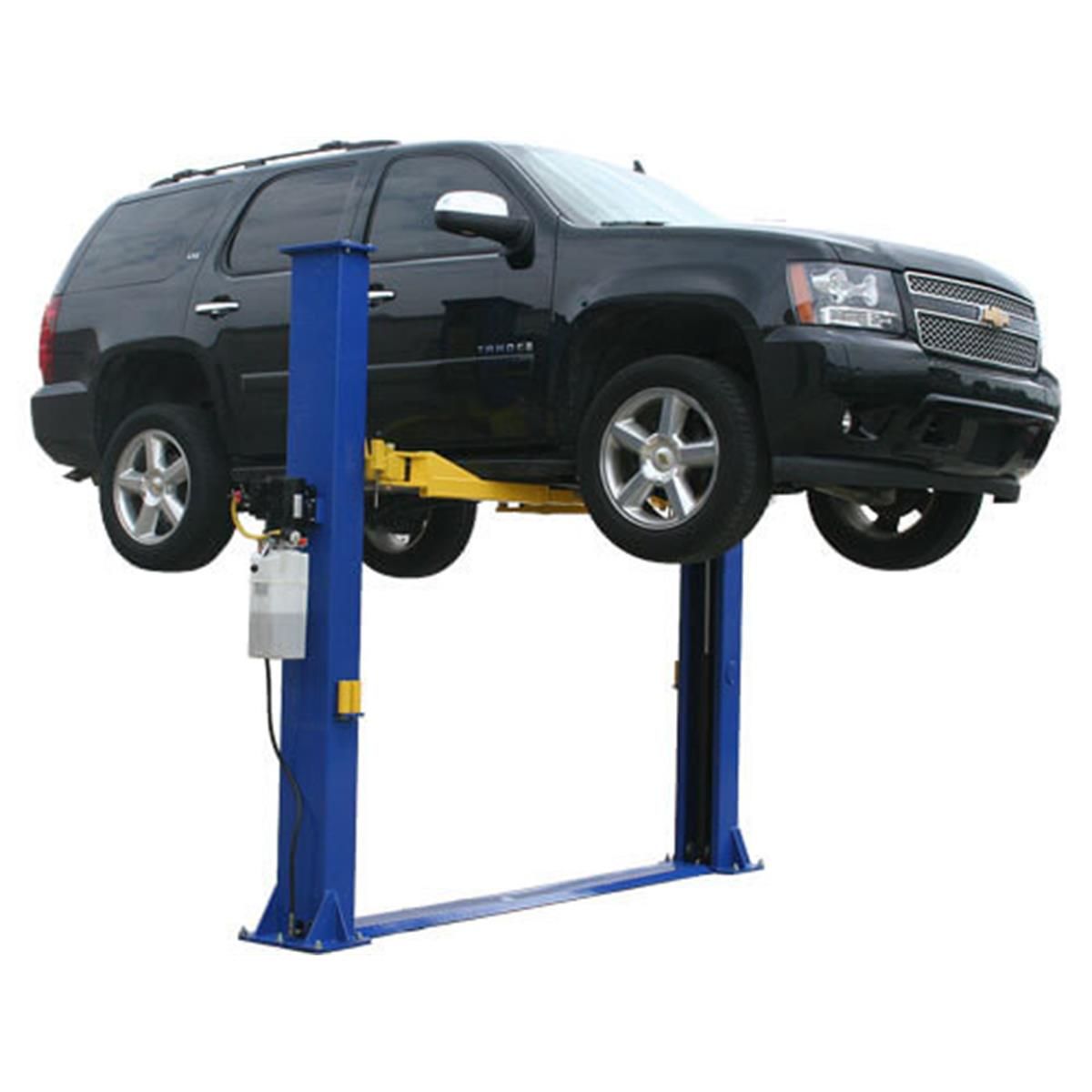

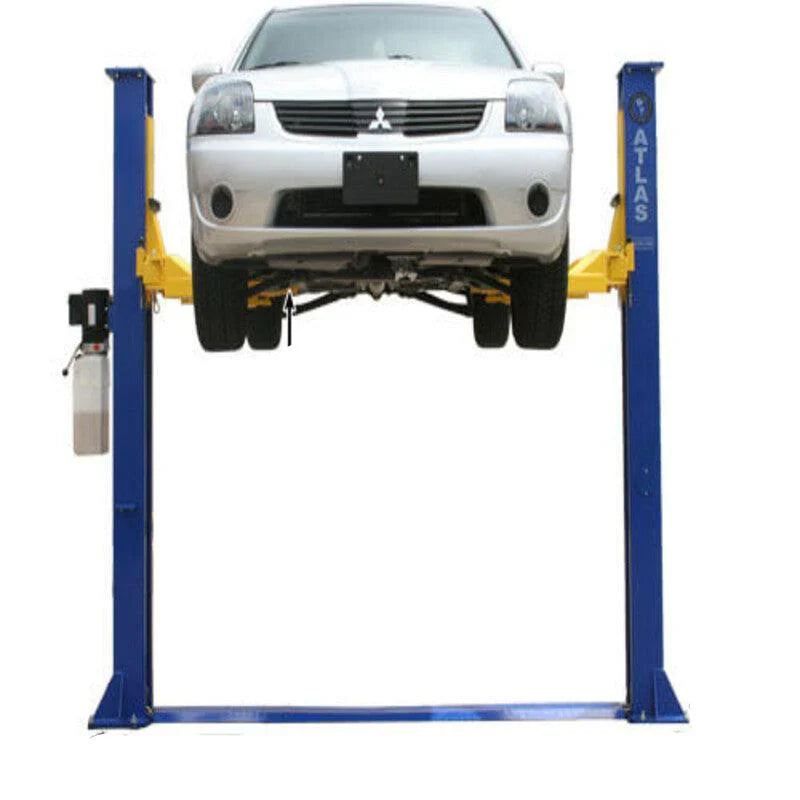

The Atlas 9KBPX is a baseplate-style two-post lift designed for garages with low ceilings. With a lifting capacity of 9,000 lbs, it accommodates a wide range of vehicles, including cars, SUVs, and light-duty trucks. Its compact design allows installation in spaces with ceiling heights as low as 9 feet 6 inches.

Specifications

• Lifting Capacity: 9,000 lbs

• Overall Height: 111 1/2" (9' 3 1/2")

• Overall Width (with Power Unit): 142" (11' 10")

• Overall Width (without Power Unit): 134 1/2" (11' 2 1/2")

• Outside Column to Outside Column: 124 7/8" (10' 4 7/8")

• Inside Column: 110" (9' 2")

• Drive-Through Width: 101" (8' 5")

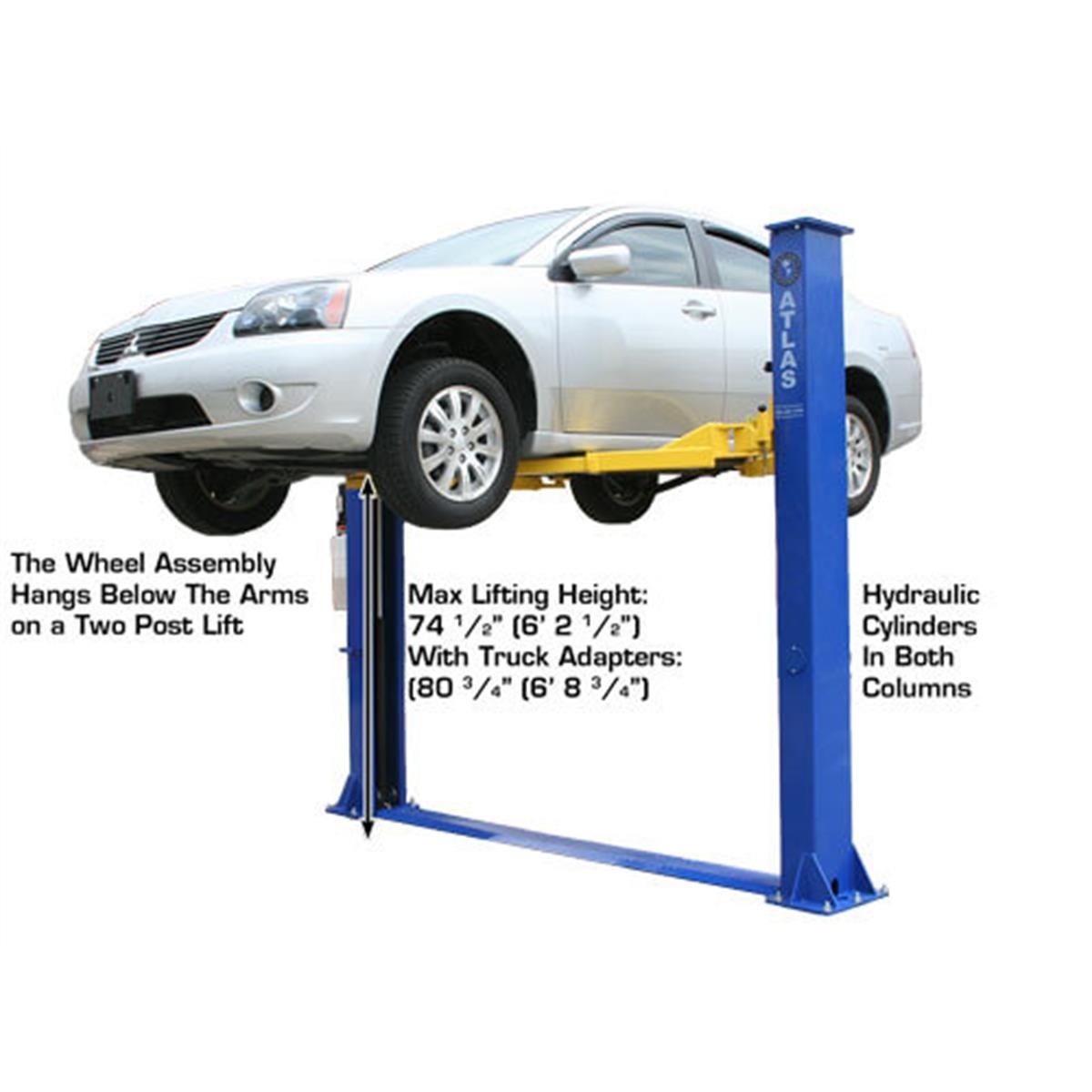

• Maximum Lift Height (without Adapters): 74 1/2"

• Maximum Lift Height (with Adapters): 81"

• Minimum Arm Height: 4"

• Column Size: 7 1/4" x 11"

• Column Steel Thickness: 5mm

• Base Plate Size: 14 1/4" x 18 1/4"

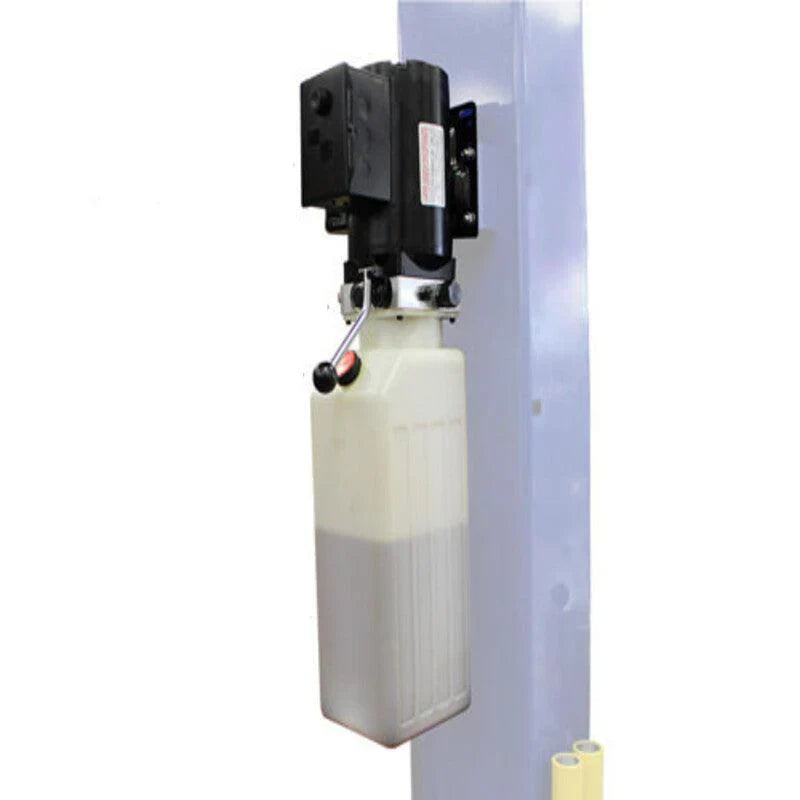

• Motor/Electrical Requirements: 220V single-phase (30 amp breaker recommended)

• Oil Requirement: 3-5 gallons of AW32 or AW46 hydraulic oil (not included)

• Concrete Requirements: Minimum 4" thickness with a strength of 3,000 PSI

• Shipping Weight: Approximately 1,400 lbsT

Features

• Baseplate Design: Ideal for low-ceiling garages, allowing installation in spaces with ceiling heights as low as 9' 6".

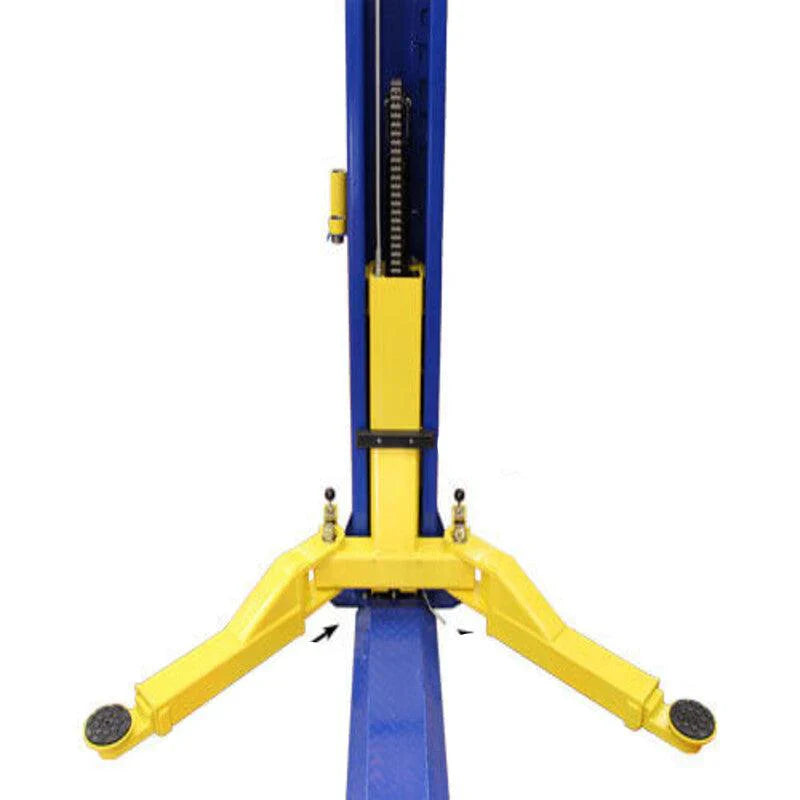

• Symmetric Arms: Provides balanced lifting for a variety of vehicle sizes.

• Dual Hydraulic Chain-Drive Cylinders: Ensures smooth and efficient lifting operations.

• Secondary Lock System (SLS): Automatically engages in the event of a slack or broken chain, enhancing safety.

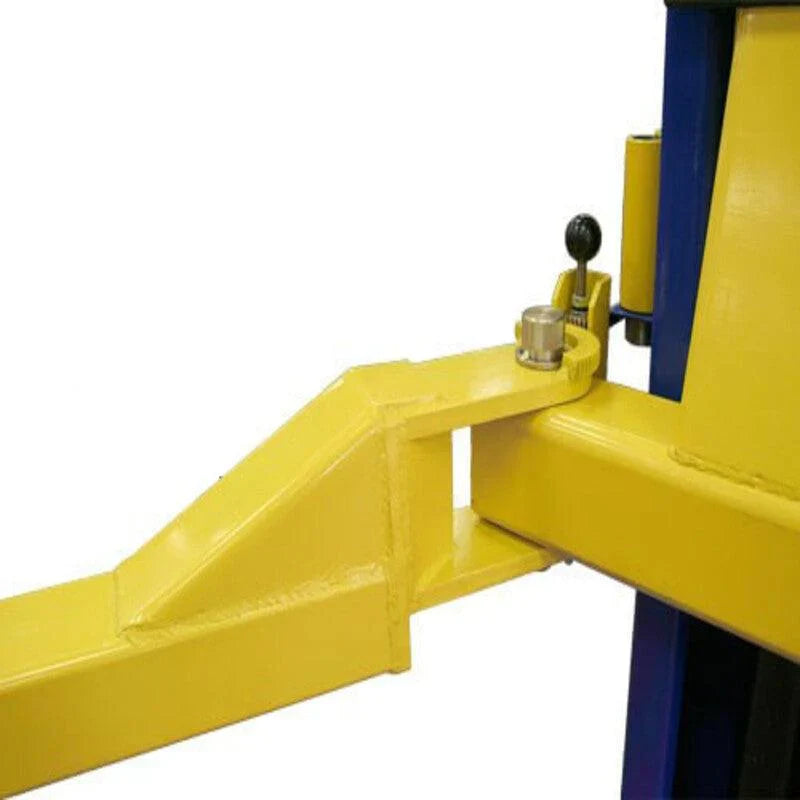

• Automatic Arm Restraints: Secure the vehicle arms automatically during lifting.

• Dual-Point Lock Release: Allows for easy and simultaneous unlocking of both columns.

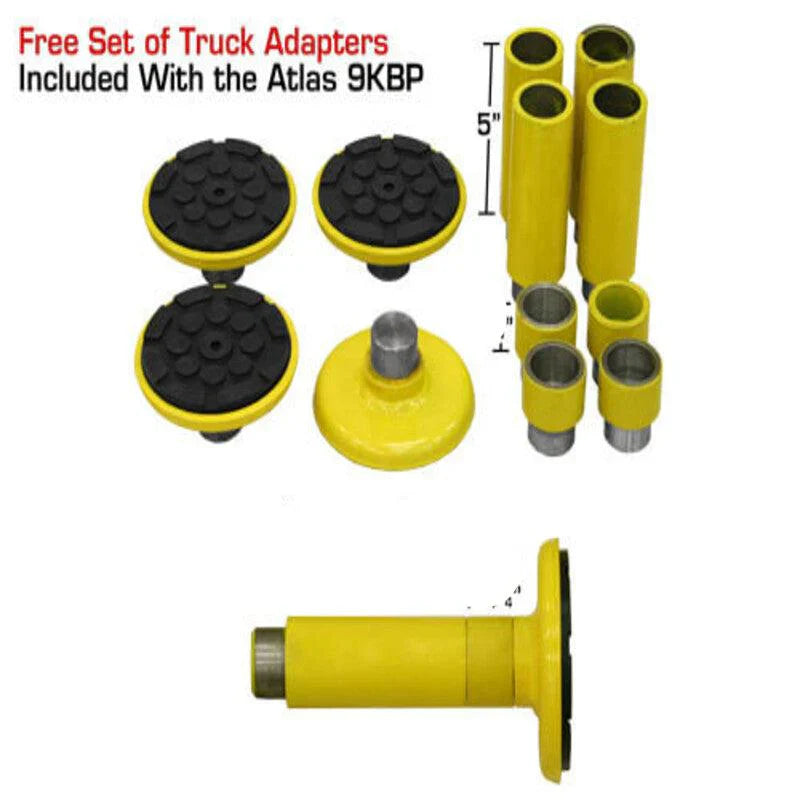

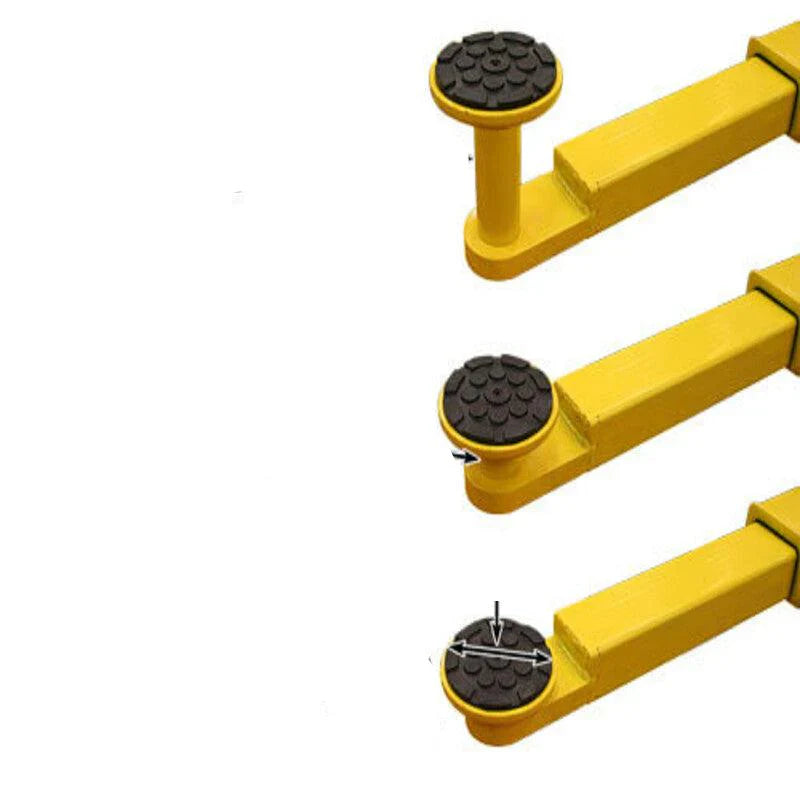

• Included Accessories: Comes with an 8-piece truck adapter set, mounting hardware, and sliding arm adapters.

Warranty

• Structural Components: 2-year warranty

• Hydraulic Components: 1-year warranty (parts only)

The Atlas 9KBPX offers a combination of strength, flexibility, and safety features, making it a reliable choice for various automotive lifting needs, especially in environments with height constraints.
