Atlas BP10000X 10,000lb 2 Post Vehicle Lift - Base Plate

Overview:

The Atlas® BP10000X is a commercial-grade, baseplate-style two-post lift engineered for lifting heavy vehicles in garages with low ceiling heights. With a lifting capacity of 10,000 lbs, it accommodates a wide range of vehicles, from compact cars to one-ton dually trucks. Its robust construction, featuring welded support gussets and dual hydraulic chain-drive cylinders, ensures durability and reliable performance. The BP10000X is designed for efficiency and safety, making it an ideal choice for both professional repair facilities and home garages with height constraints.

Specifications:

• Lifting Capacity: 10,000 lbs

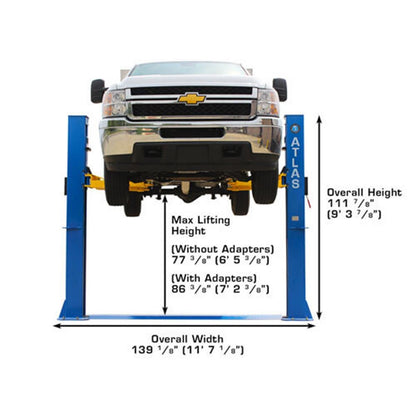

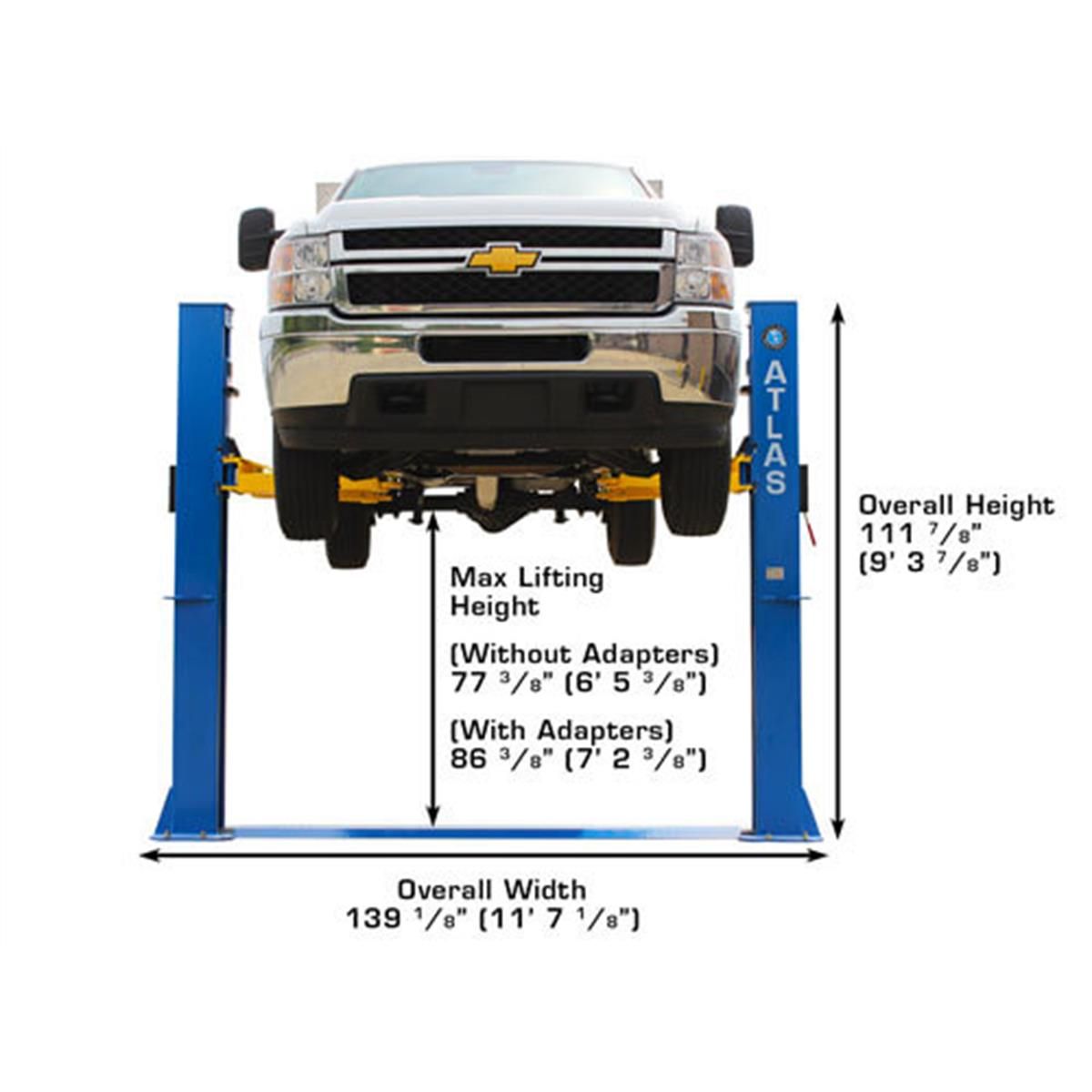

• Overall Height: 111 7/8" (9' 3 7/8")

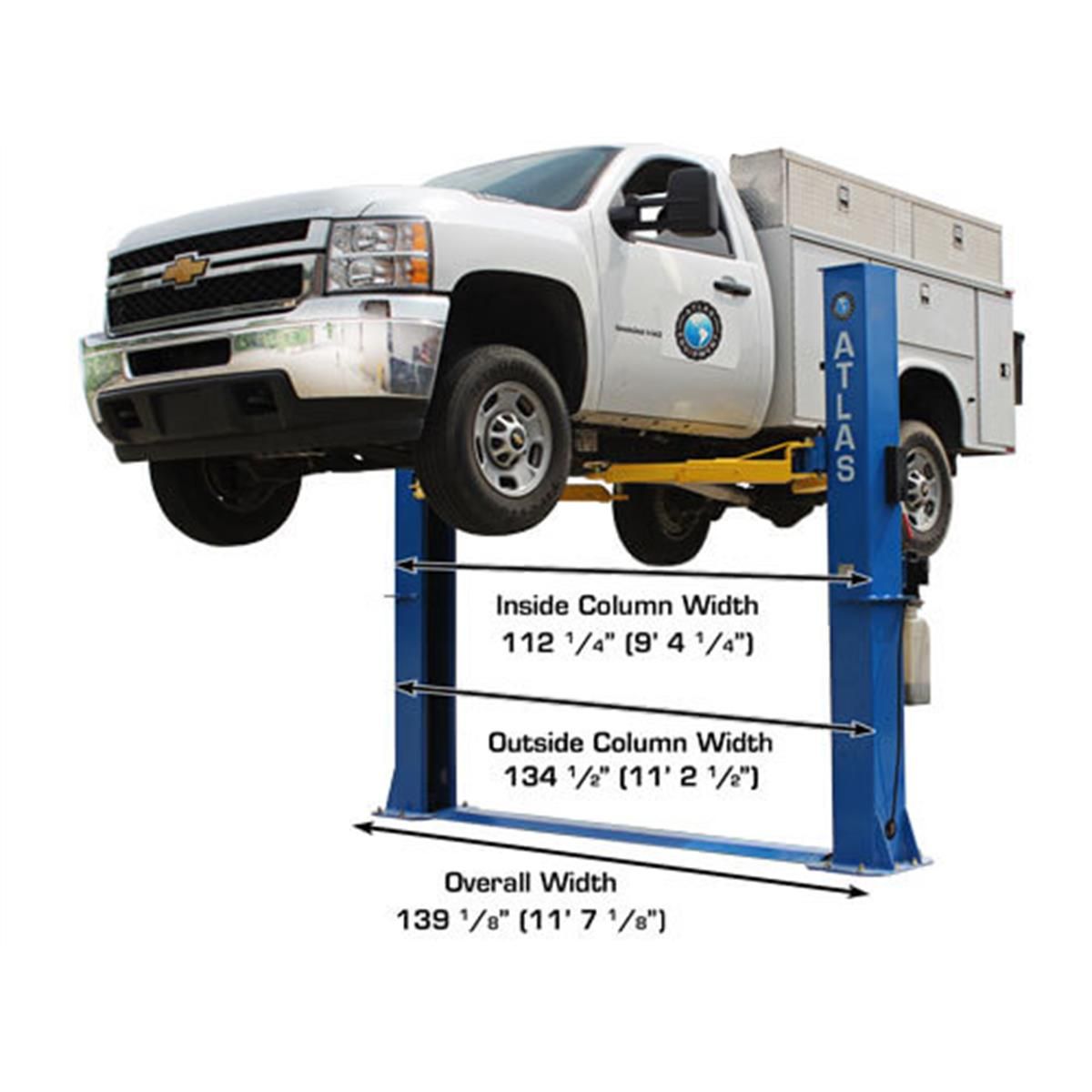

• Overall Floor Width: 139 1/8" (11' 7 1/8")

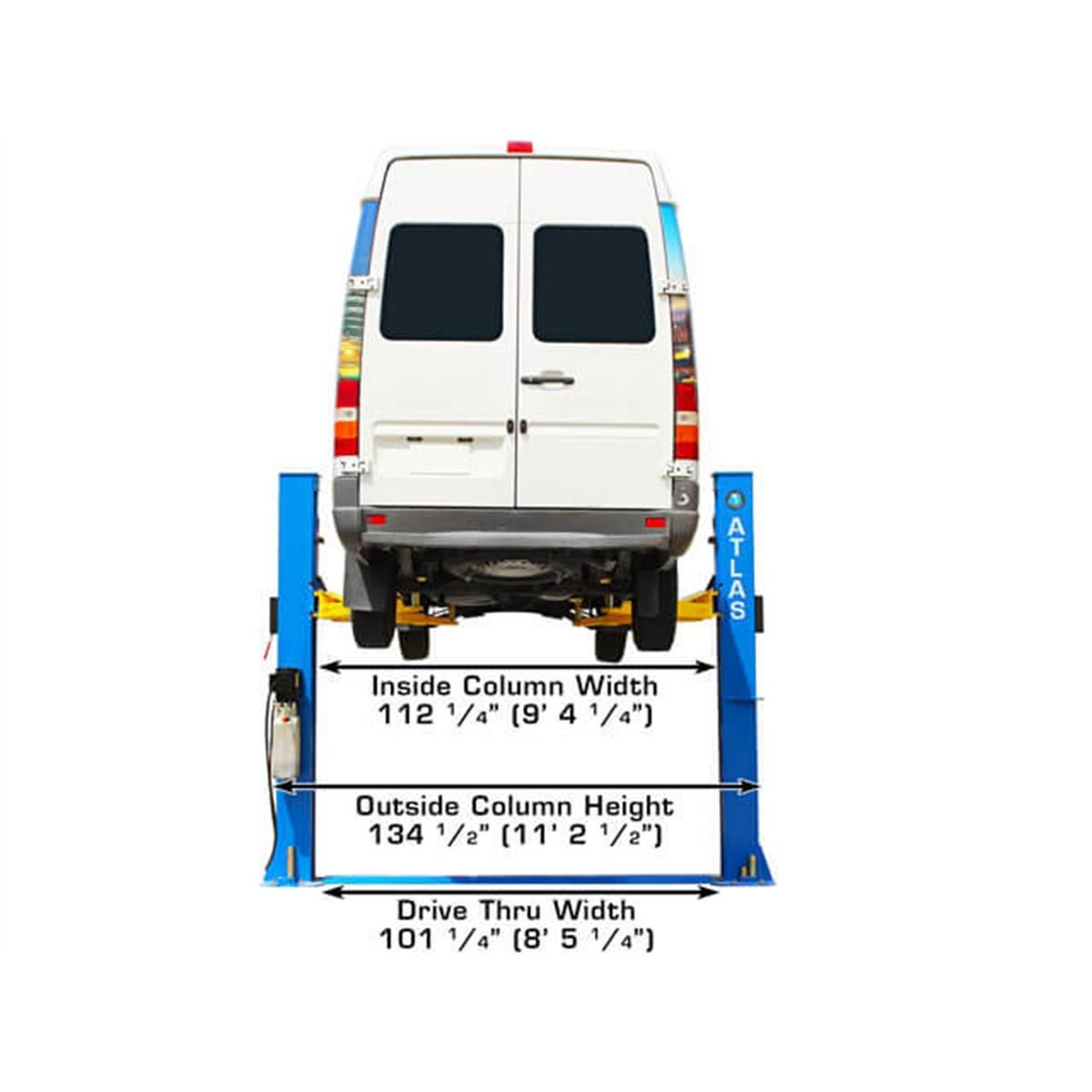

• Outside Column to Outside Column: 134 1/2" (11' 2 1/2")

• Inside Column Width: 112 1/4" (9' 4 1/4")

• Drive-Thru Clearance: 101 1/4" (8' 5 1/4")

• Maximum Lift Height (Without Adapters): 77 3/8"

• Maximum Lift Height (With Adapters): 86 3/8"

• Minimum Arm Height: 4"

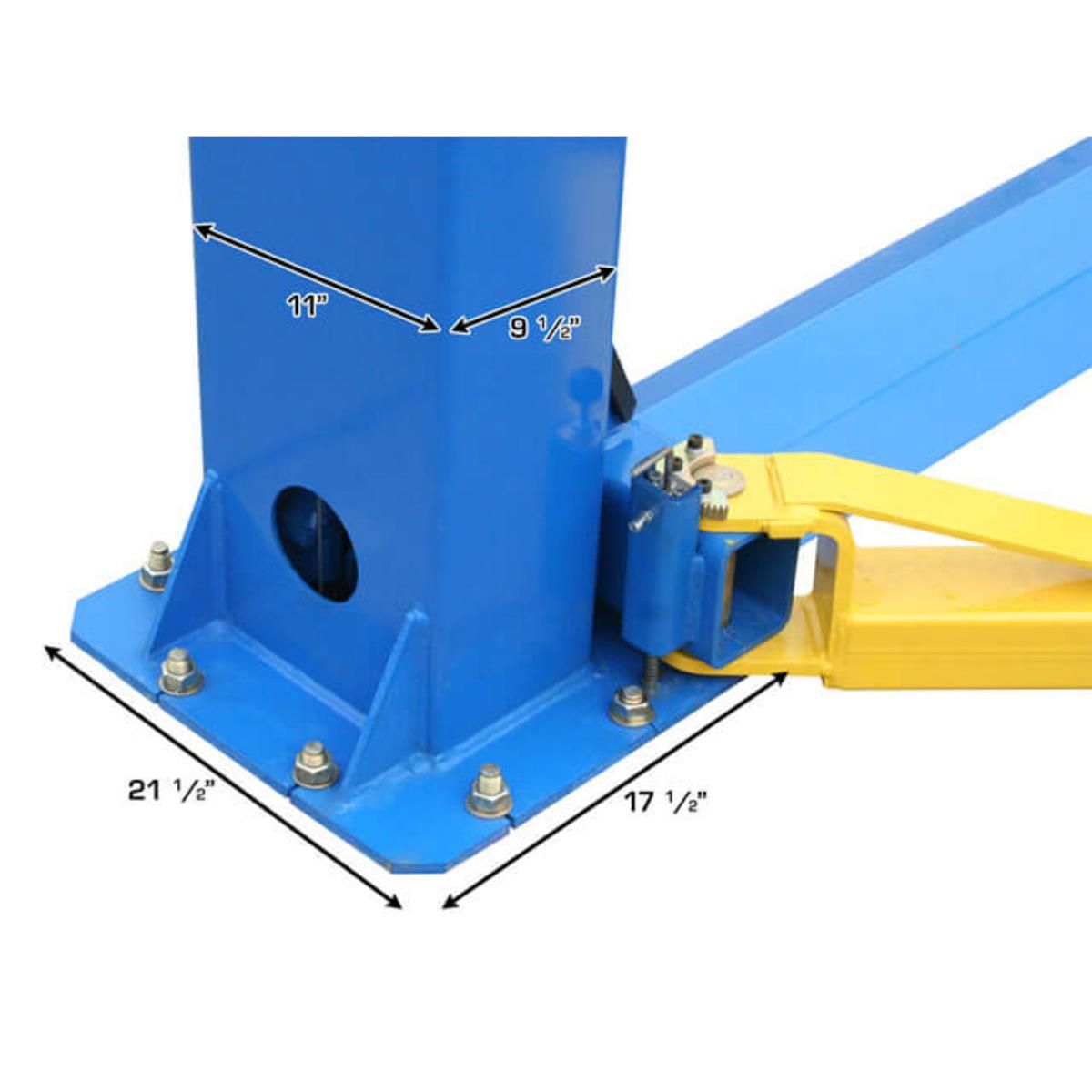

• Column Size: 9 1/2" x 11"

• Column Steel Thickness: 6mm

• Base Plate Dimensions: 17 1/2" x 21 1/2"

• Motor/Electrical Requirement: 220V single-phase, 30A breaker recommended

• Oil Requirement: 3-5 gallons AW32/AW46 (not included)

• Shipping Weight: Approximately 1,640 lbs

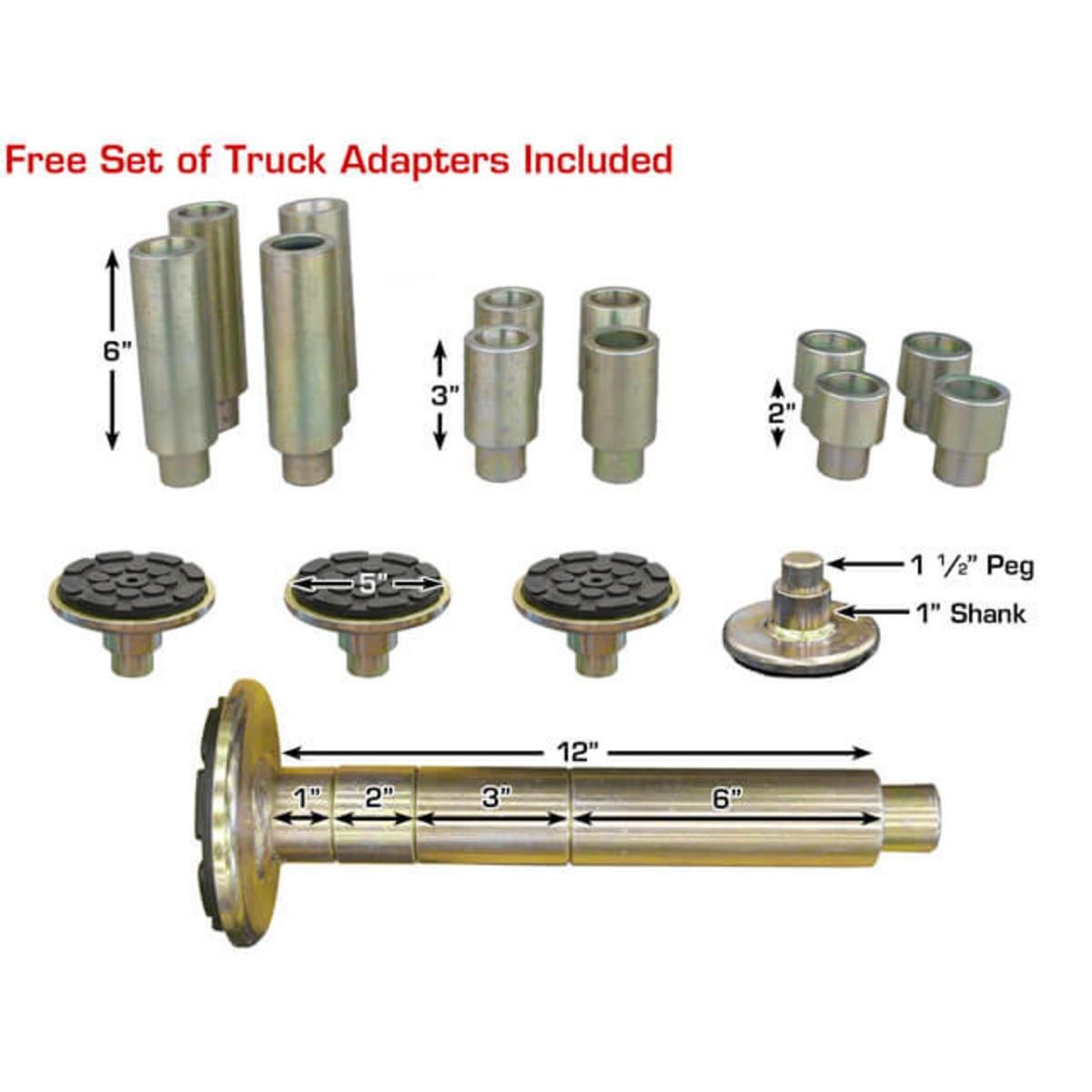

• Adapter Heights: 4 each of 2", 3", and 6"

• Arm Hole/Adapter Peg Size: 1.5"

• Concrete Requirements: Minimum 4" thick concrete with a strength of 3,000 psi

Features:

• Baseplate Design: Ideal for low-ceiling garages, allowing installation in spaces with ceilings as low as 9' 3 7/8".

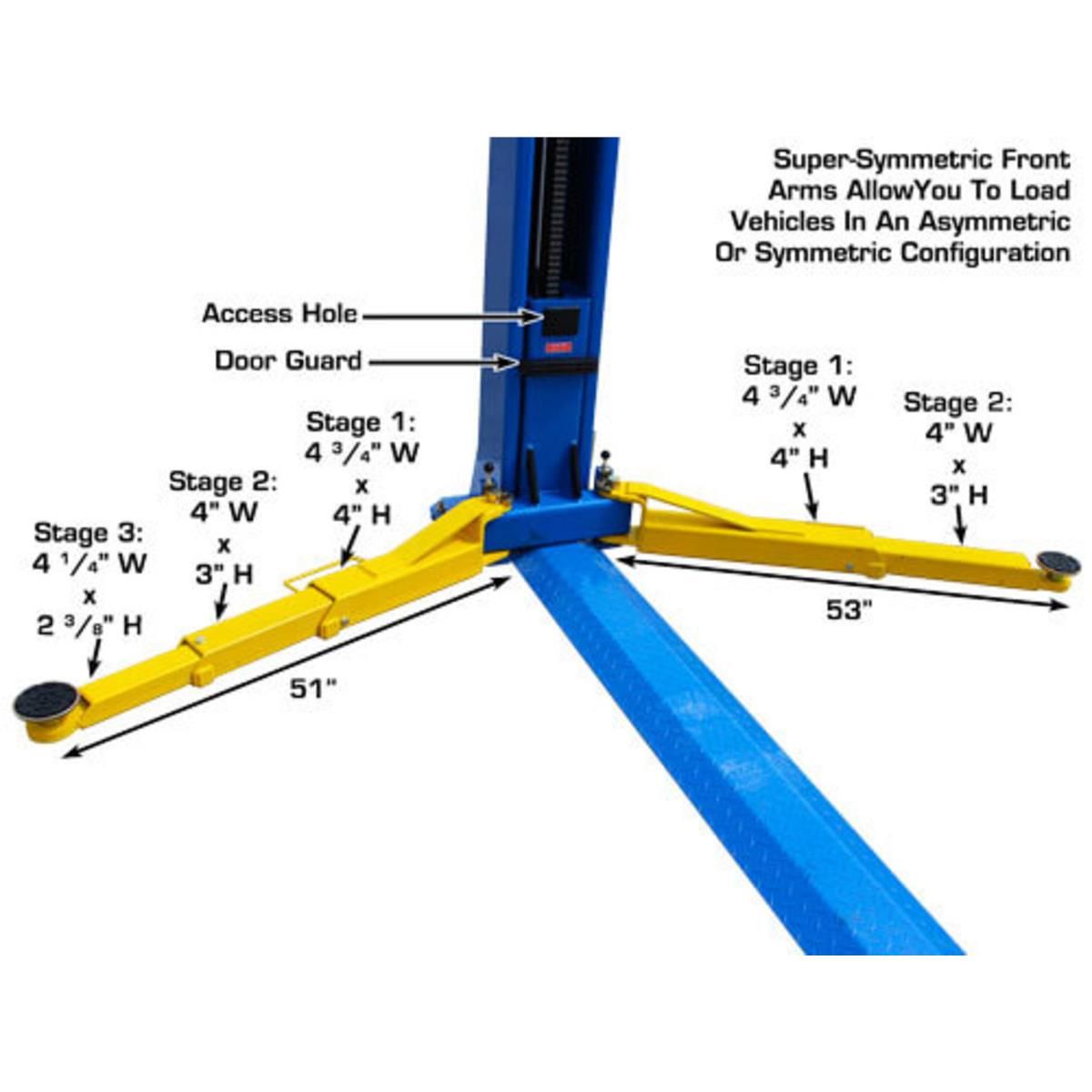

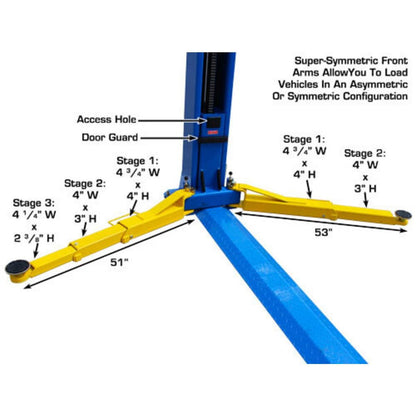

• Super-Symmetric Arms: Provides flexibility in vehicle positioning, accommodating a variety of vehicle sizes and configurations.

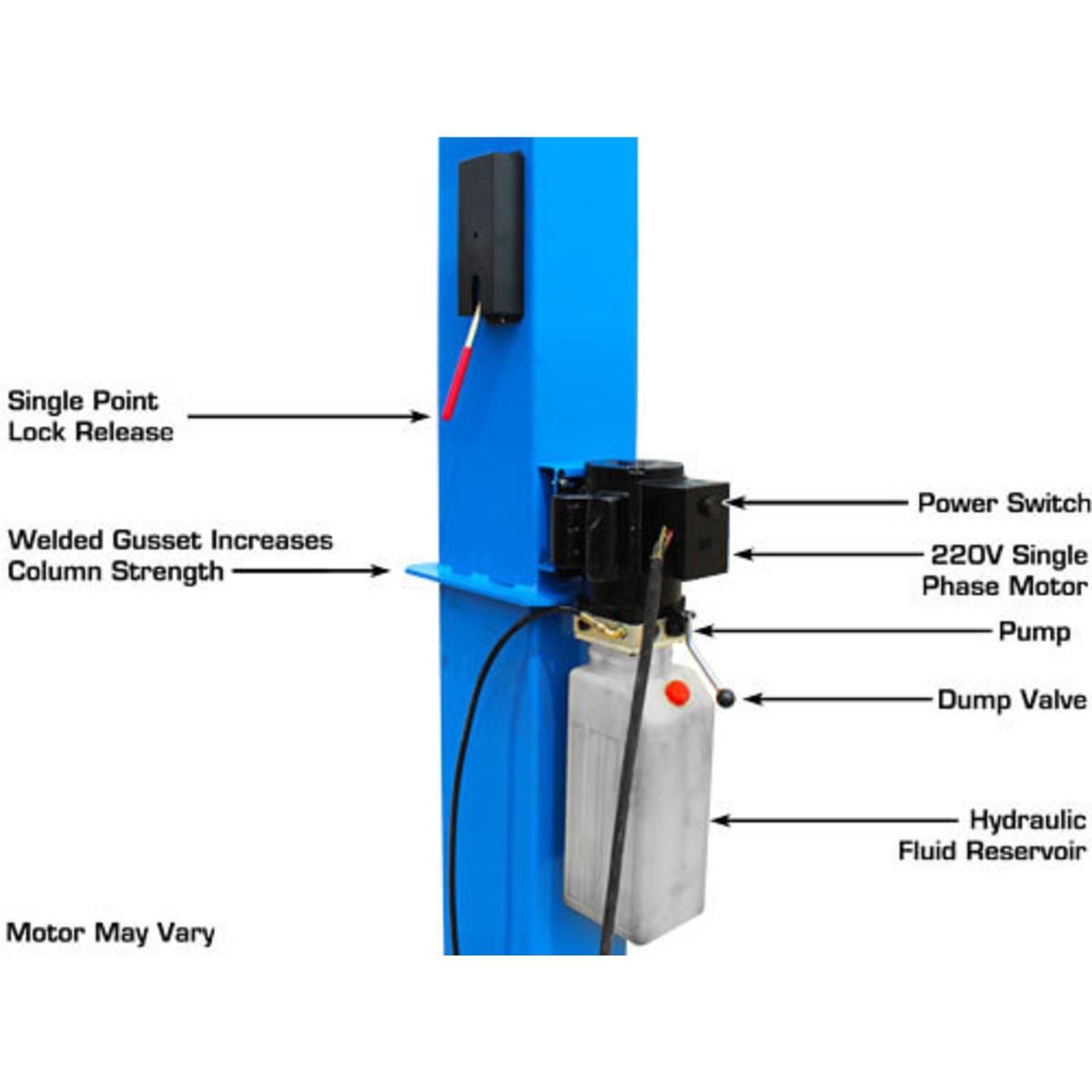

• Single-Point Lock Release: Allows both columns to be disengaged simultaneously for efficient operation.

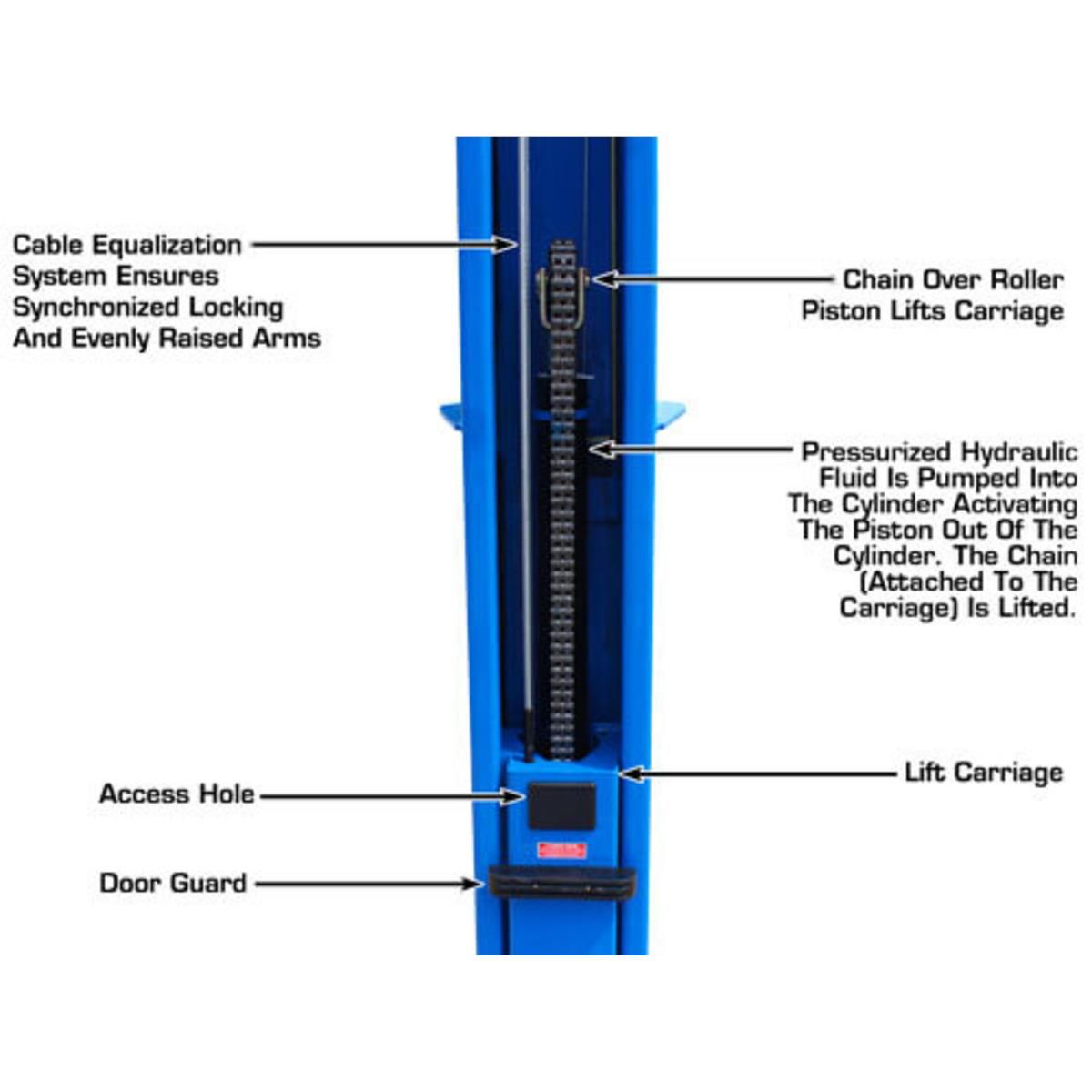

• Dual Hydraulic Chain-Drive Cylinders: Constructed to ANSI standards for smooth and reliable lifting performance.

• Welded Support Gussets: Enhances column strength and stability during lifting operations.

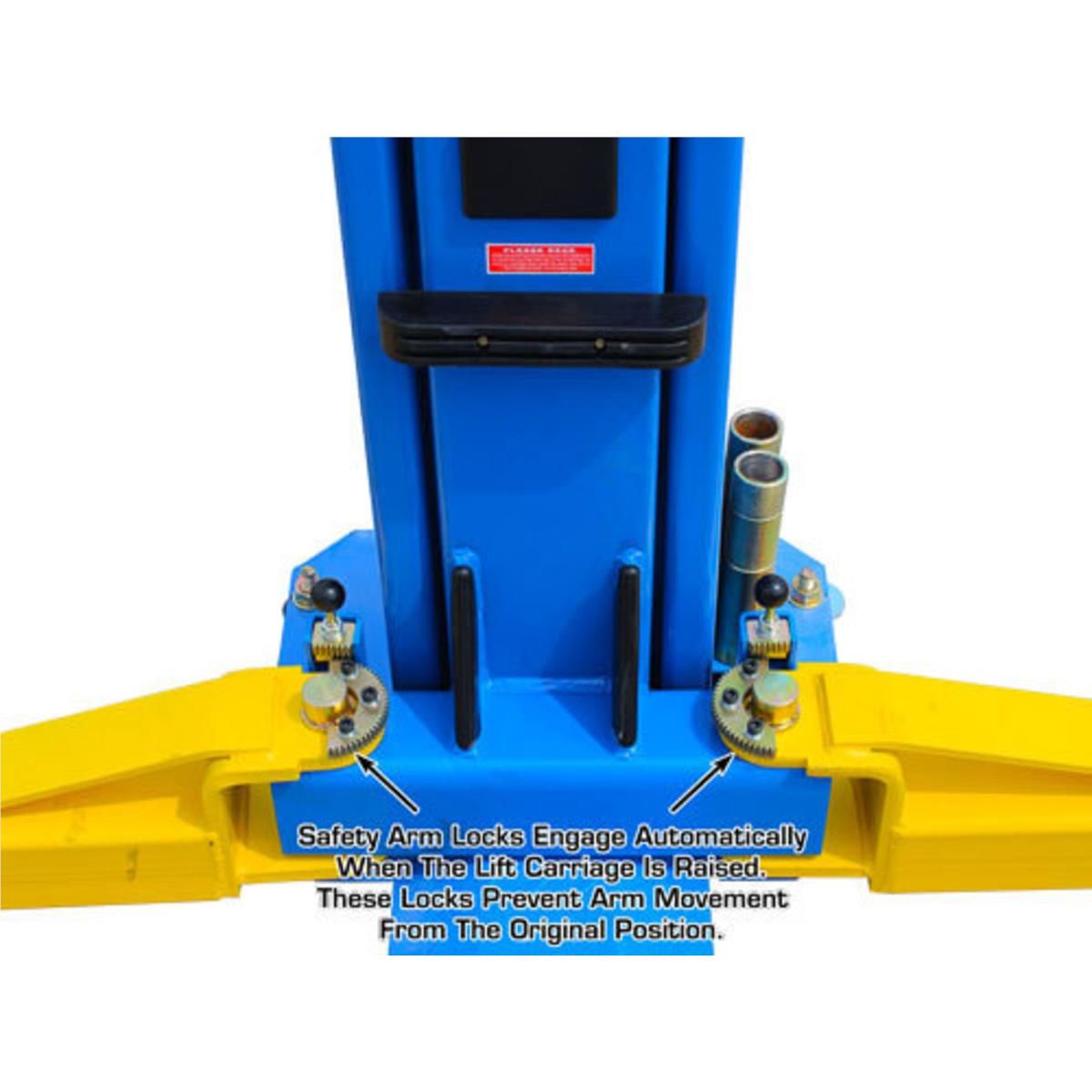

• Automatic Arm Restraints: Ensures arms remain securely in place when the lift is raised.

• Powder Coat Finish: Provides a durable and corrosion-resistant surface for long-lasting use.

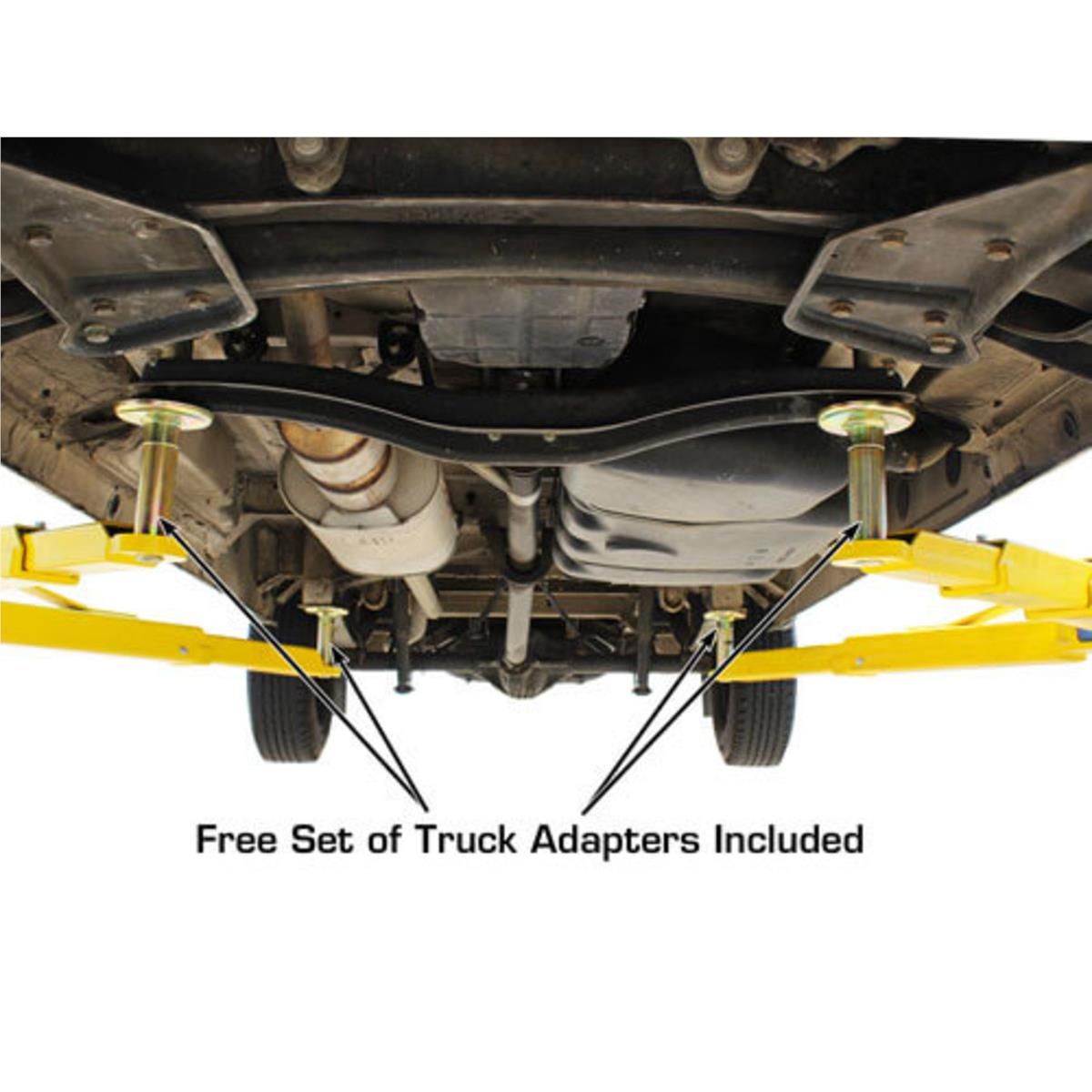

• Included Accessories: Comes with a free 12-piece truck adapter set to accommodate various vehicle lifting points.

Installation Requirements:

• Ceiling Height: Minimum of 9' 4" to accommodate the lift's overall height.

• Concrete Specifications: Minimum 4" thick concrete with a strength of 3,000 psi.

• Electrical: 220V single-phase power supply with a 30A breaker.

Warranty:

• Structural Components: 5-year limited warranty.

• Hydraulic Components: 2-year limited warranty (parts only).

• Wear Items: 90-day warranty.

Important Details:

• Vehicle Compatibility: Suitable for a wide range of vehicles, including compact cars, sedans, SUVs, and light trucks.

• Safety Precautions: Operators should adhere to the safety guidelines outlined in the user manual to prevent accidents and ensure proper use.

• Maintenance: Regular inspections and maintenance are recommended to keep the equipment in optimal working condition and extend its lifespan.

• Environmental Conditions: Operate the lift in a clean, dry, and well-ventilated environment to ensure safety and efficiency.
