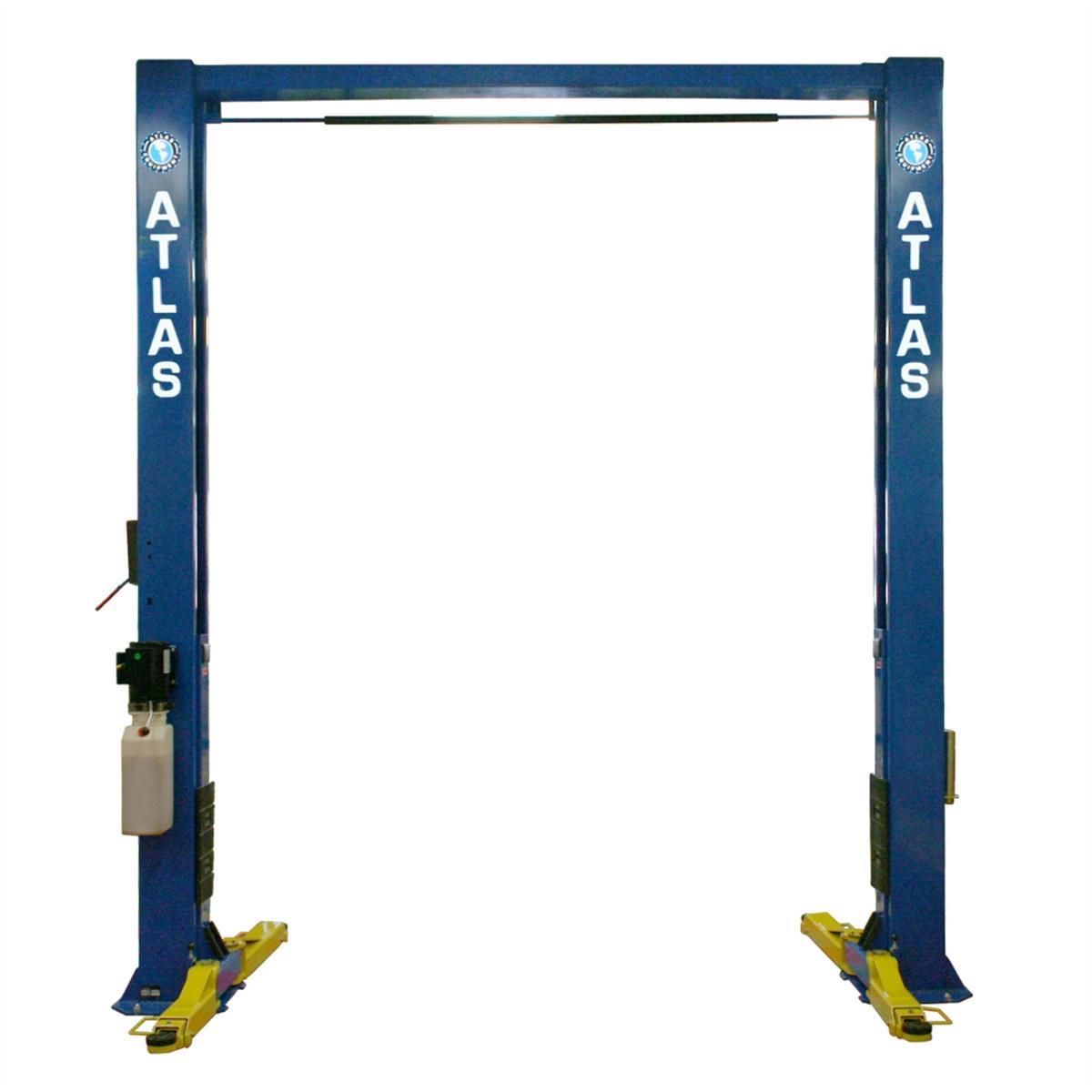

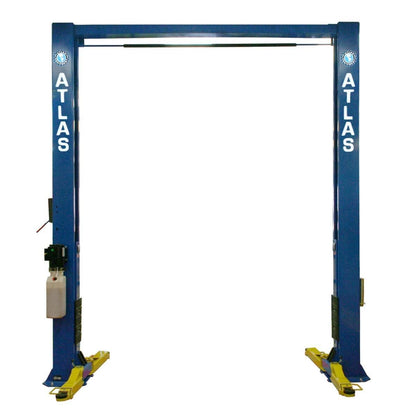

Atlas OHX10000X 10,000 lb Extra Tall 2 Post Vehicle Lift

Overview

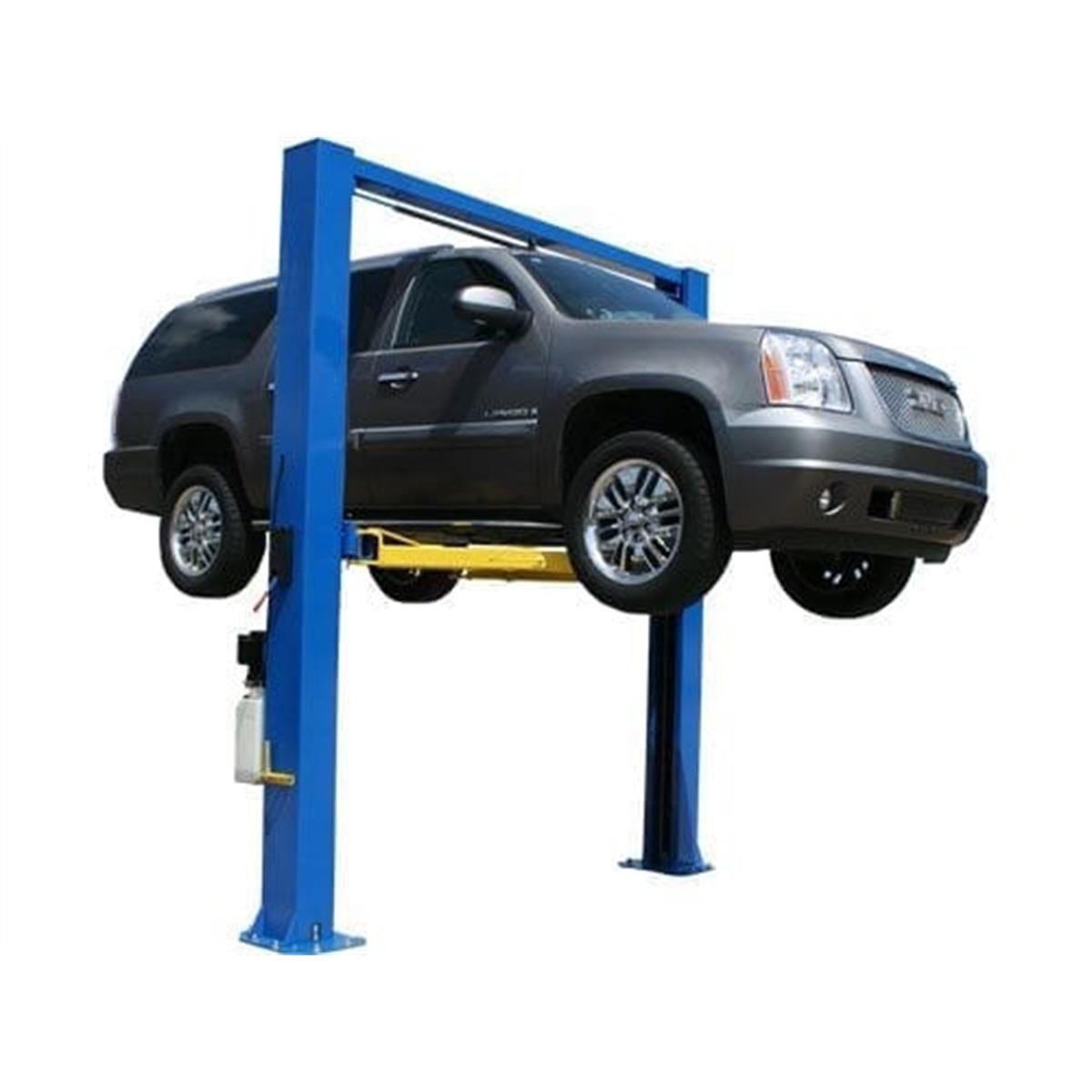

The Atlas® OHX10000X is a heavy-duty, clear-floor two-post automotive lift designed for professionals and serious automotive enthusiasts alike. With a 10,000 lb. lifting capacity, extra-tall columns, and extra-wide design, it's ideal for servicing a wide range of vehicles—from small sedans to large trucks. Engineered for durability, this lift combines high performance with a spacious design, making it perfect for shops with high ceilings and demanding lifting needs.

Specifications

• Lifting Capacity: 10,000 lbs

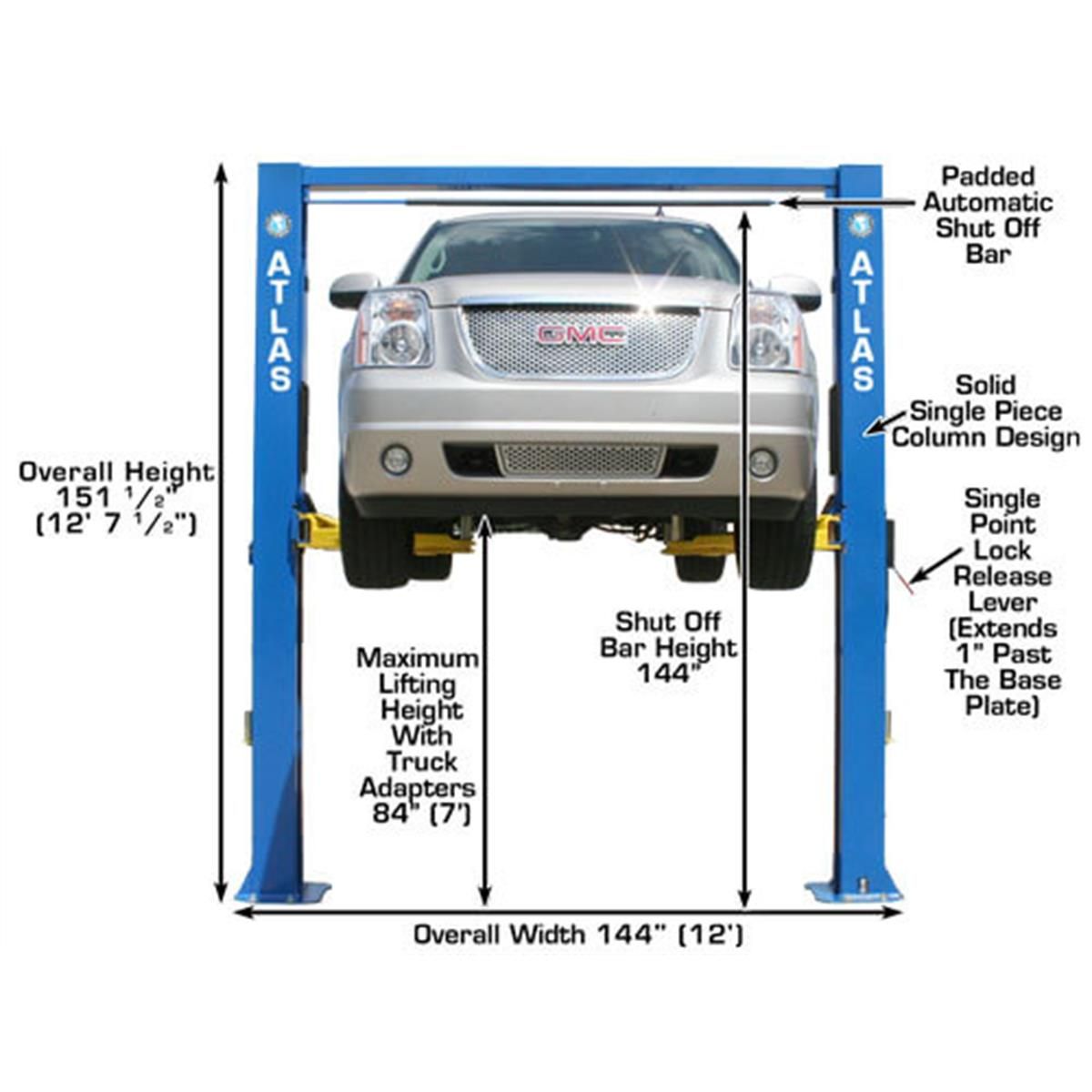

• Overall Height: 152" (12 ft 8 in)

• Overall Floor Width: 144 3/8" (12 ft 3/8 in)

• Outside Column to Outside Column: 136"

• Inside Column Width: 118 1/4"

• Drive-Thru Clearance: 106 7/8"

• Max Lift Height (w/o Adapters): 74 3/4"

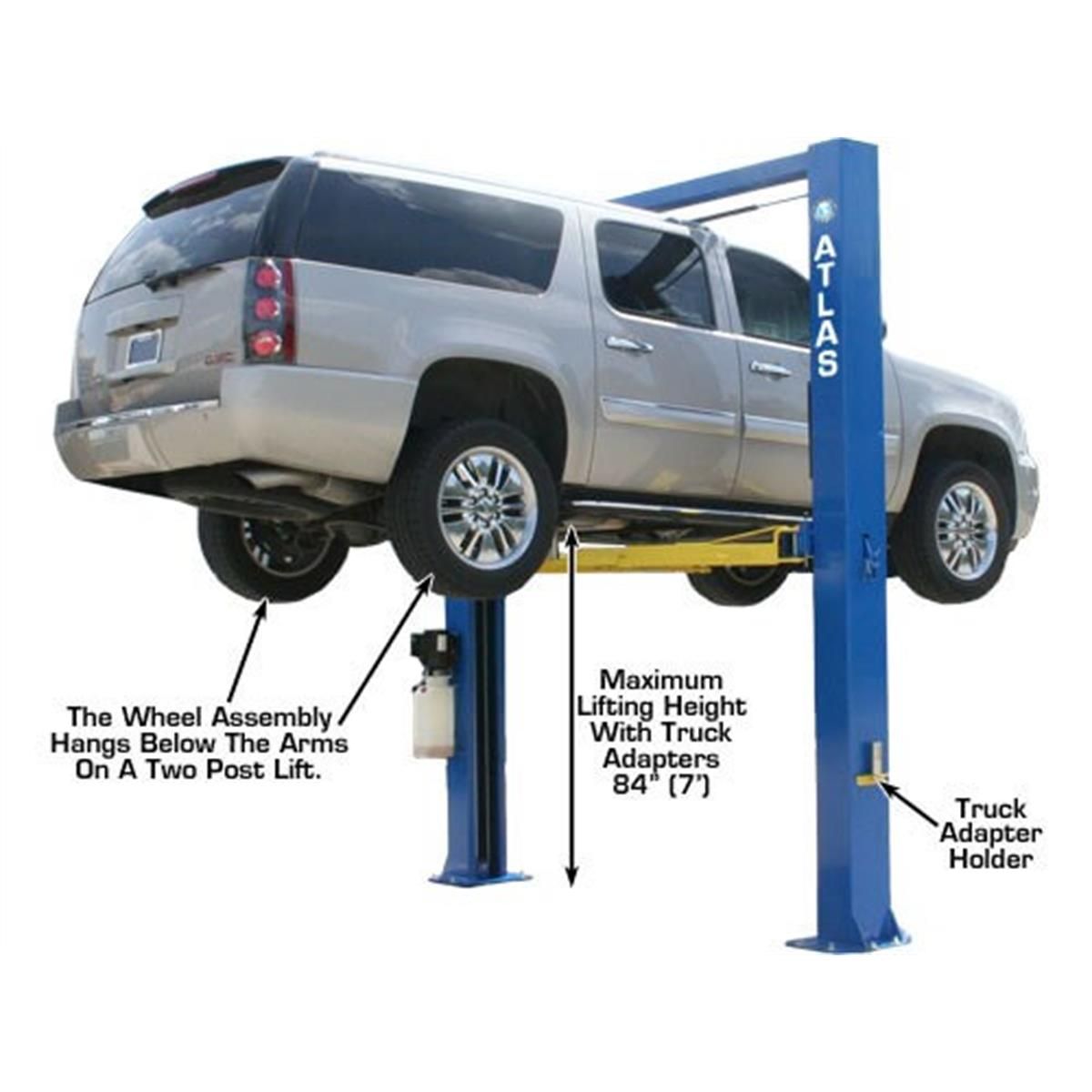

• Max Lift Height (with Adapters): 85 3/4"

• Minimum Arm Height: 4 1/2"

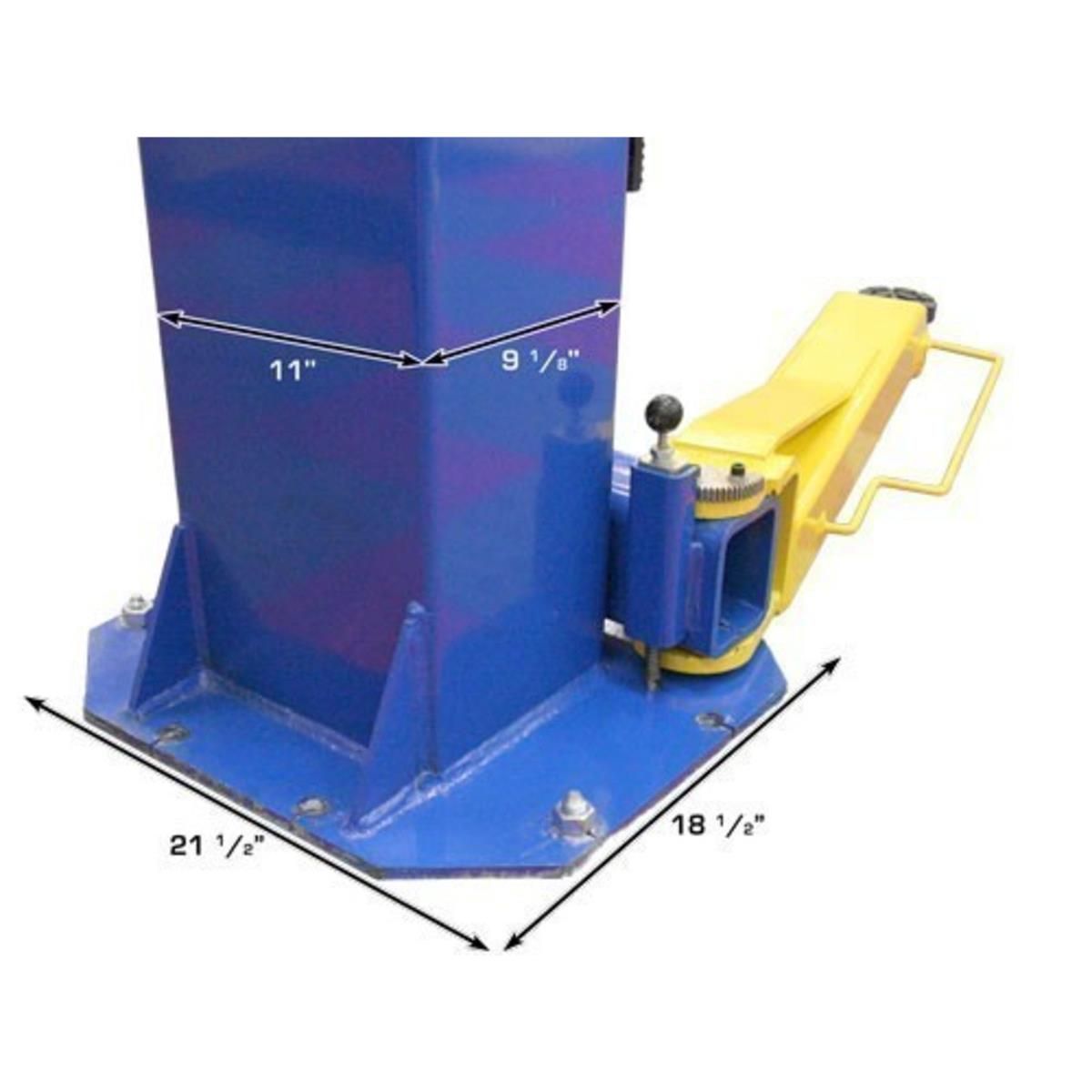

• Base Plate Size: 18 1/2" x 21 1/2"

• Column Steel Thickness: 5 mm

• Power Requirements: 220V, Single Phase, 30A Breaker Recommended

• Shipping Weight: Approx. 1,665 lbs

Features

• Extra-Wide & Tall Design: Accommodates larger vehicles and provides ample workspace underneath.

• Clear Floor Design: Easier access for under-vehicle work and tool movement.

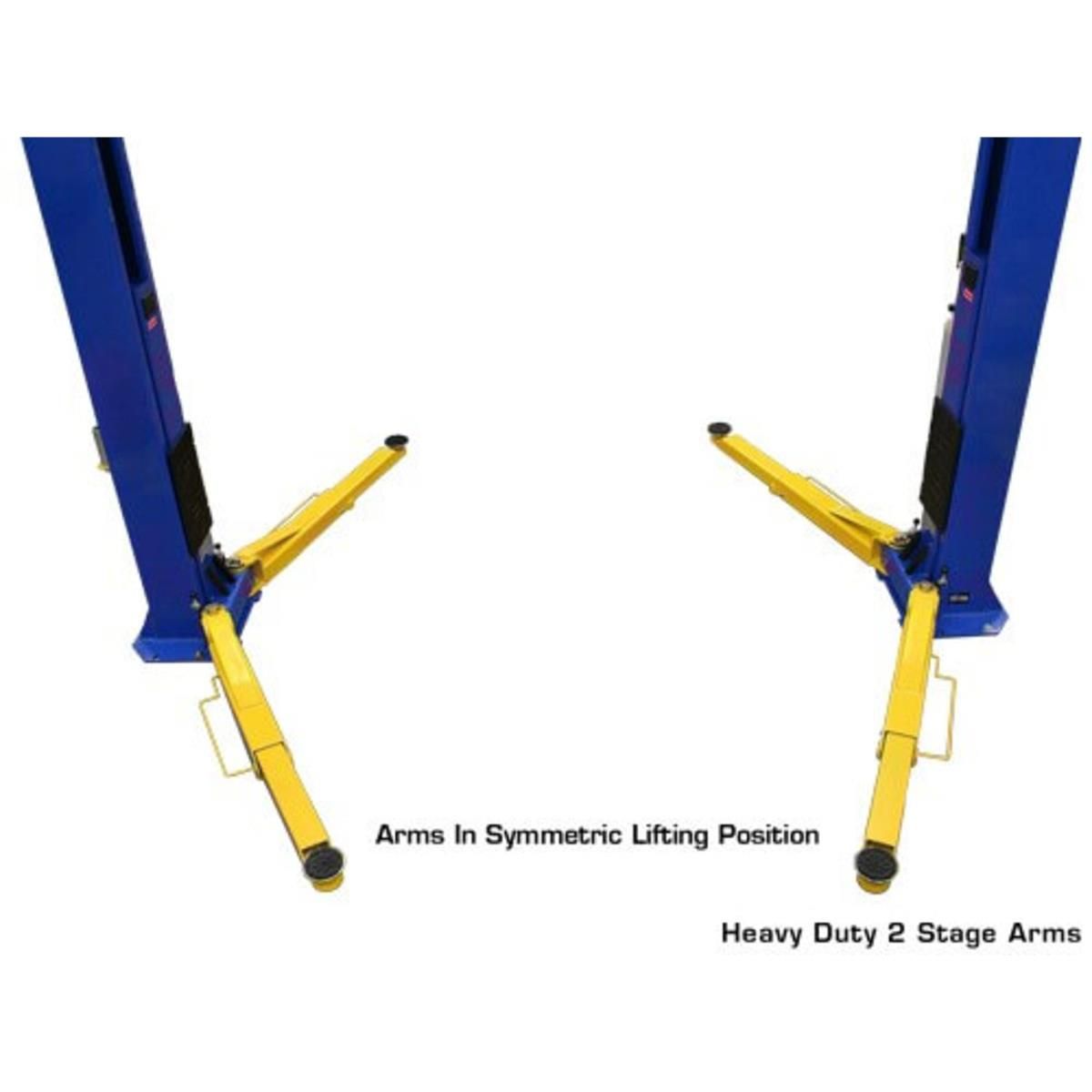

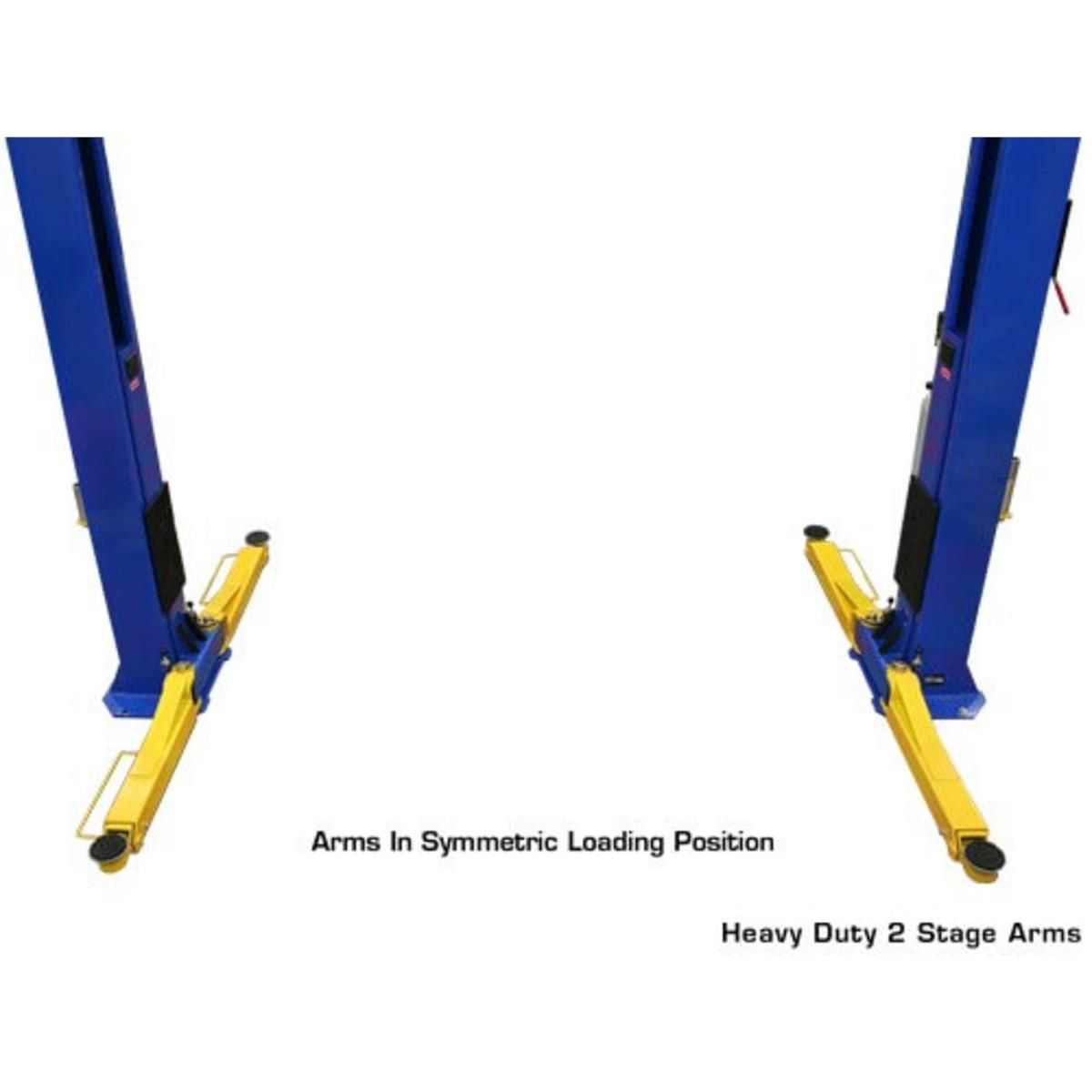

• Symmetric Arm Configuration: Ideal for centered vehicle lifting and balanced support.

• Automatic Arm Restraints: Secure the arms in place automatically when the lift is raised.

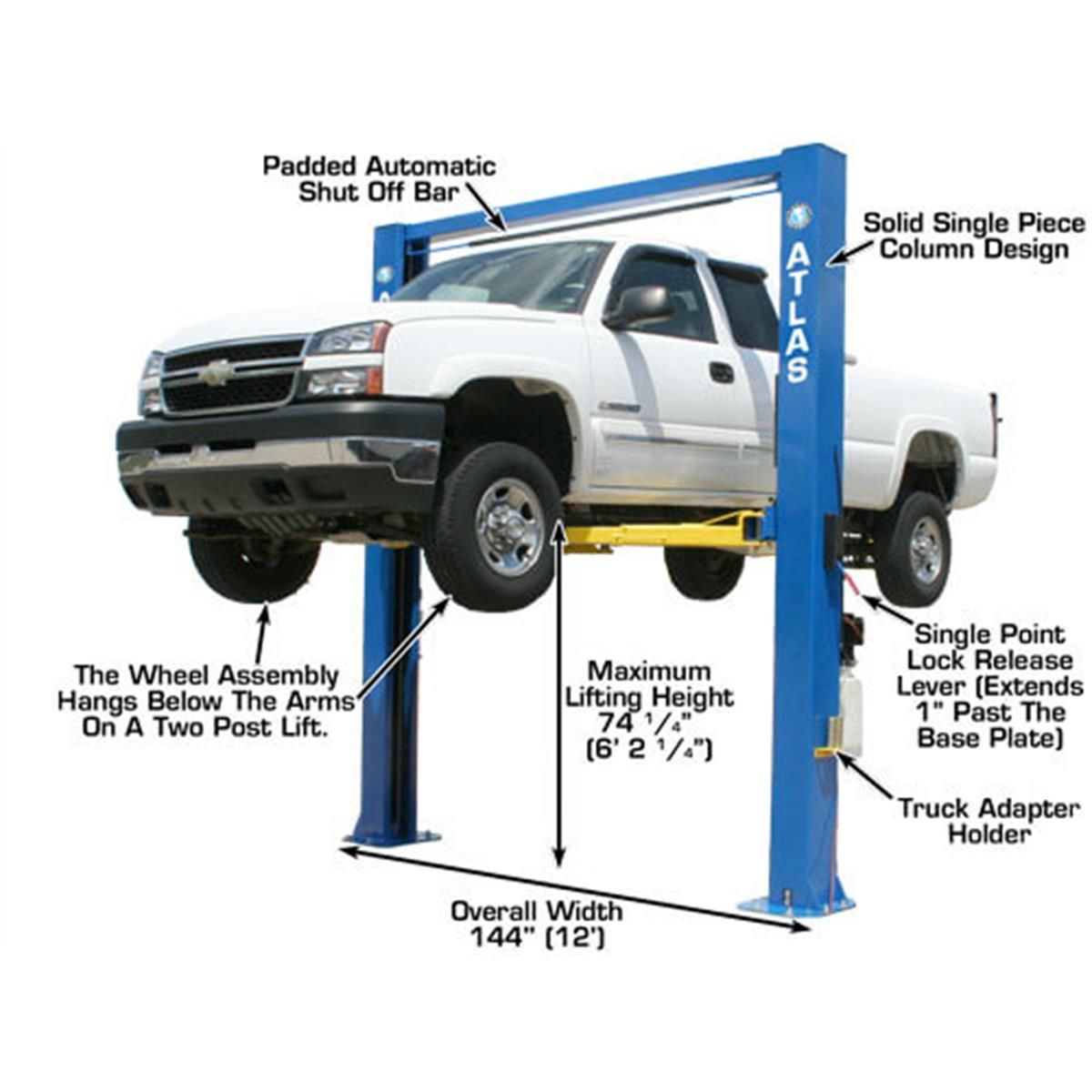

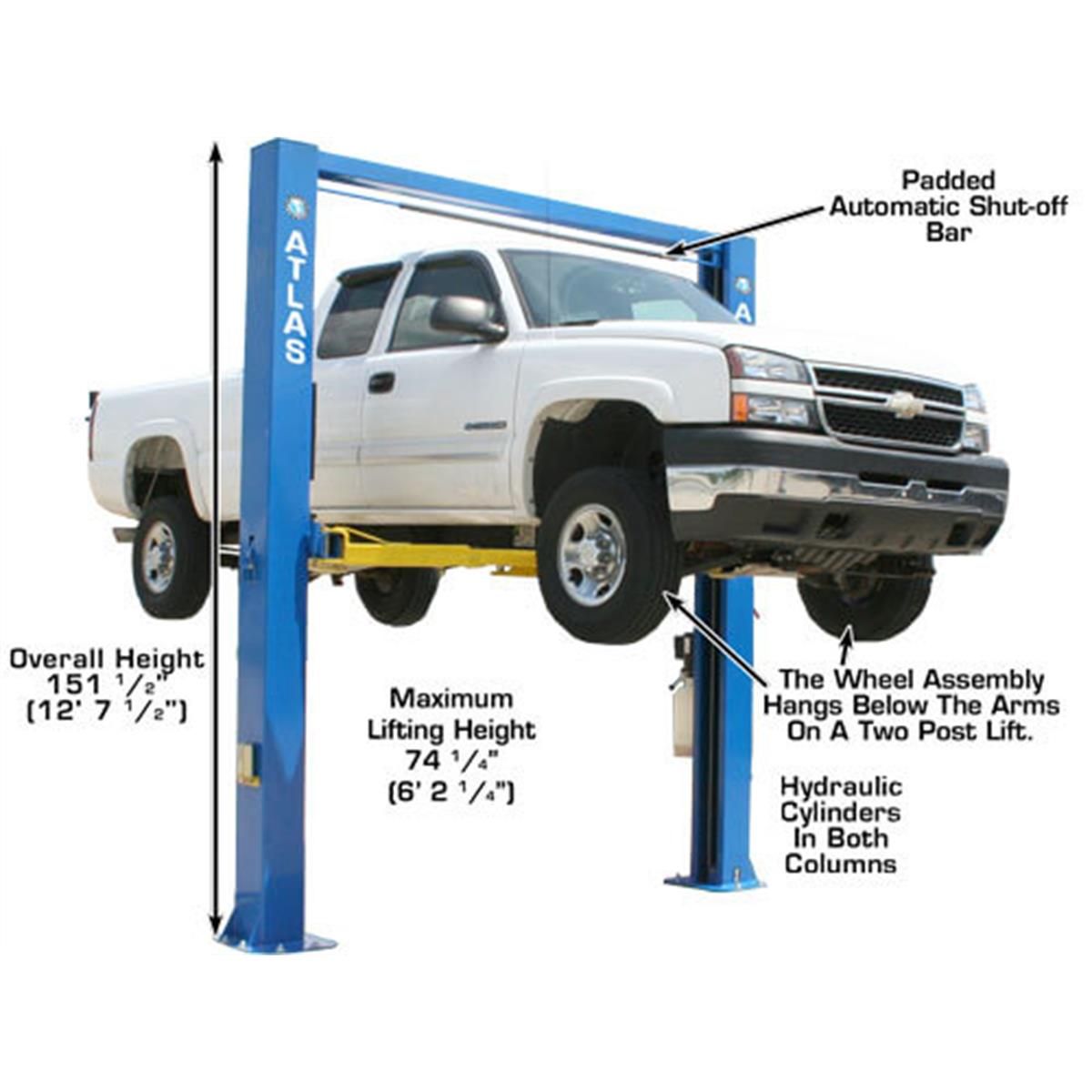

• Padded Overhead Shut-Off Bar: Prevents vehicles from being raised too high, protecting the vehicle and lift.

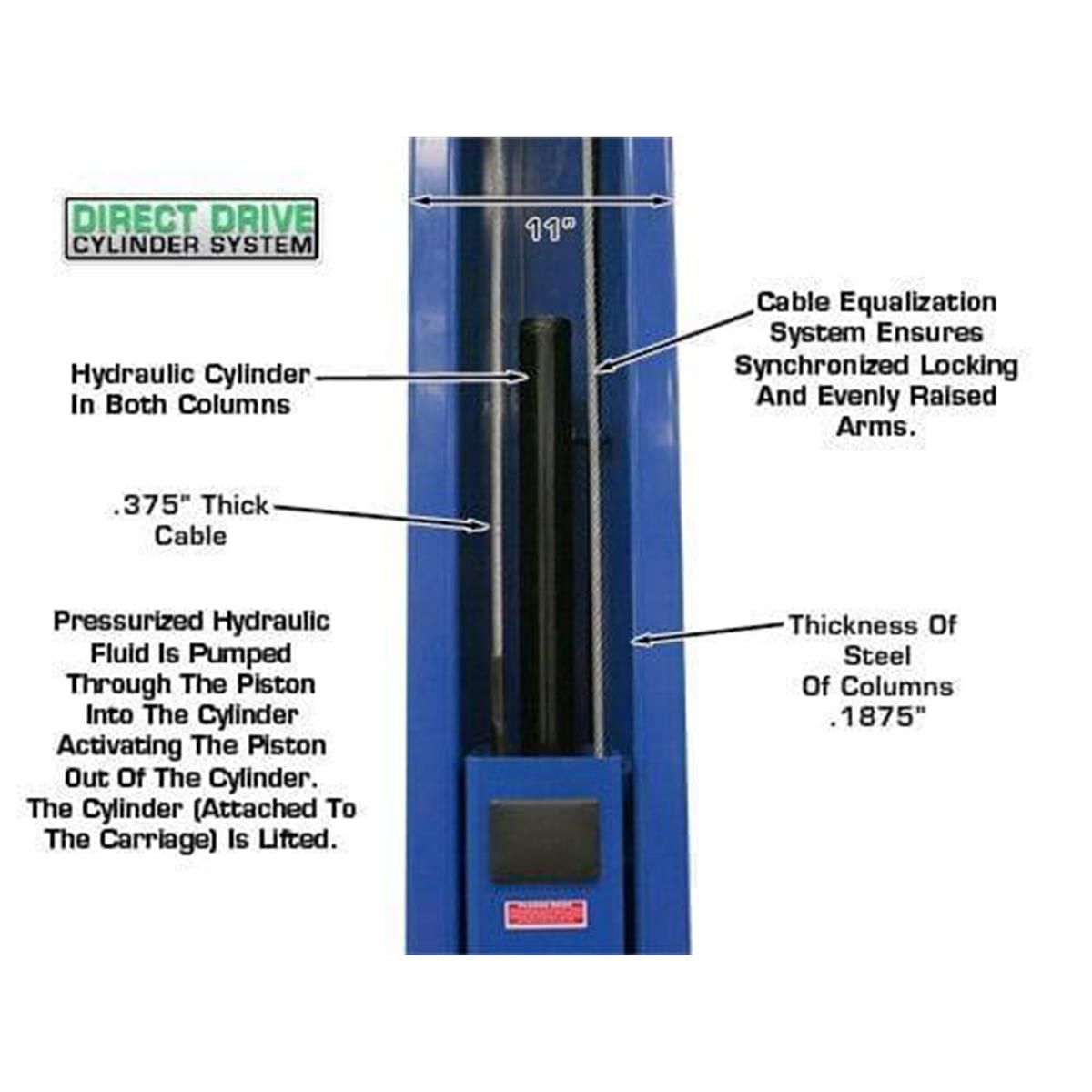

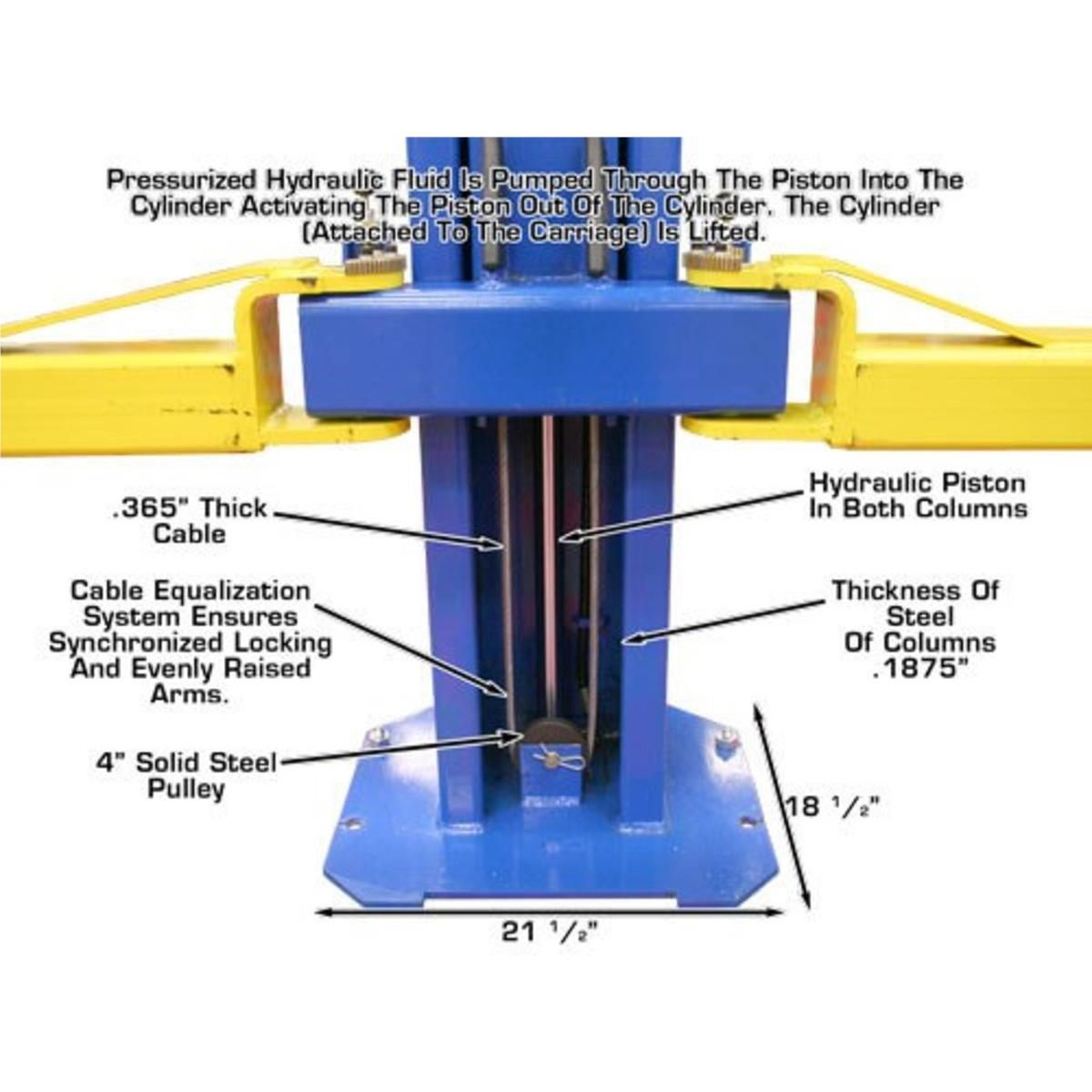

• Dual Direct-Drive Hydraulic Cylinders: Provide smooth, efficient lifting and long-term reliability.

• Heavy-Duty Powder Coat Finish: Ensures resistance to corrosion and long-term use.

• 12-Piece Truck Adapter Set Included: Makes it easier to work on a wide range of trucks and SUVs.

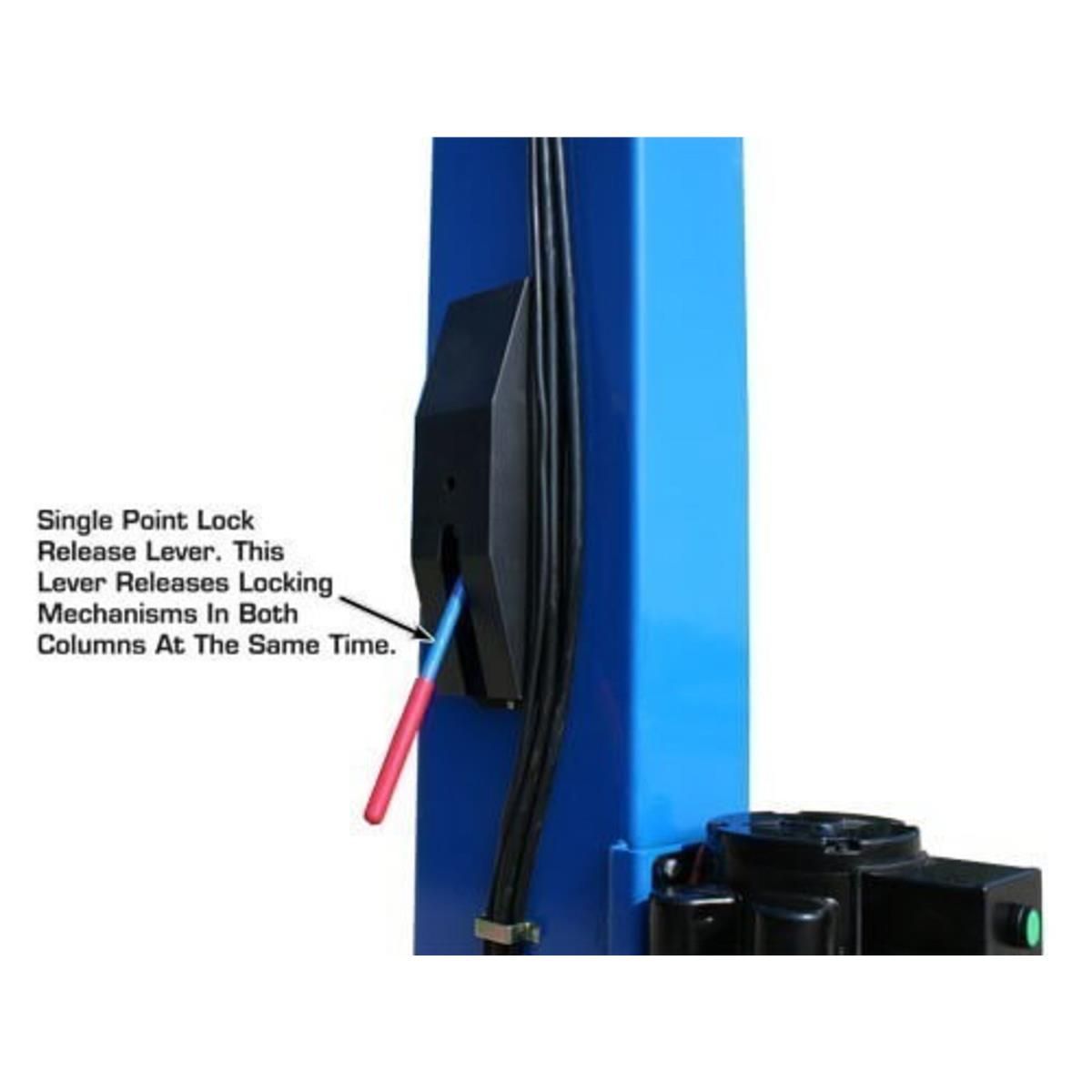

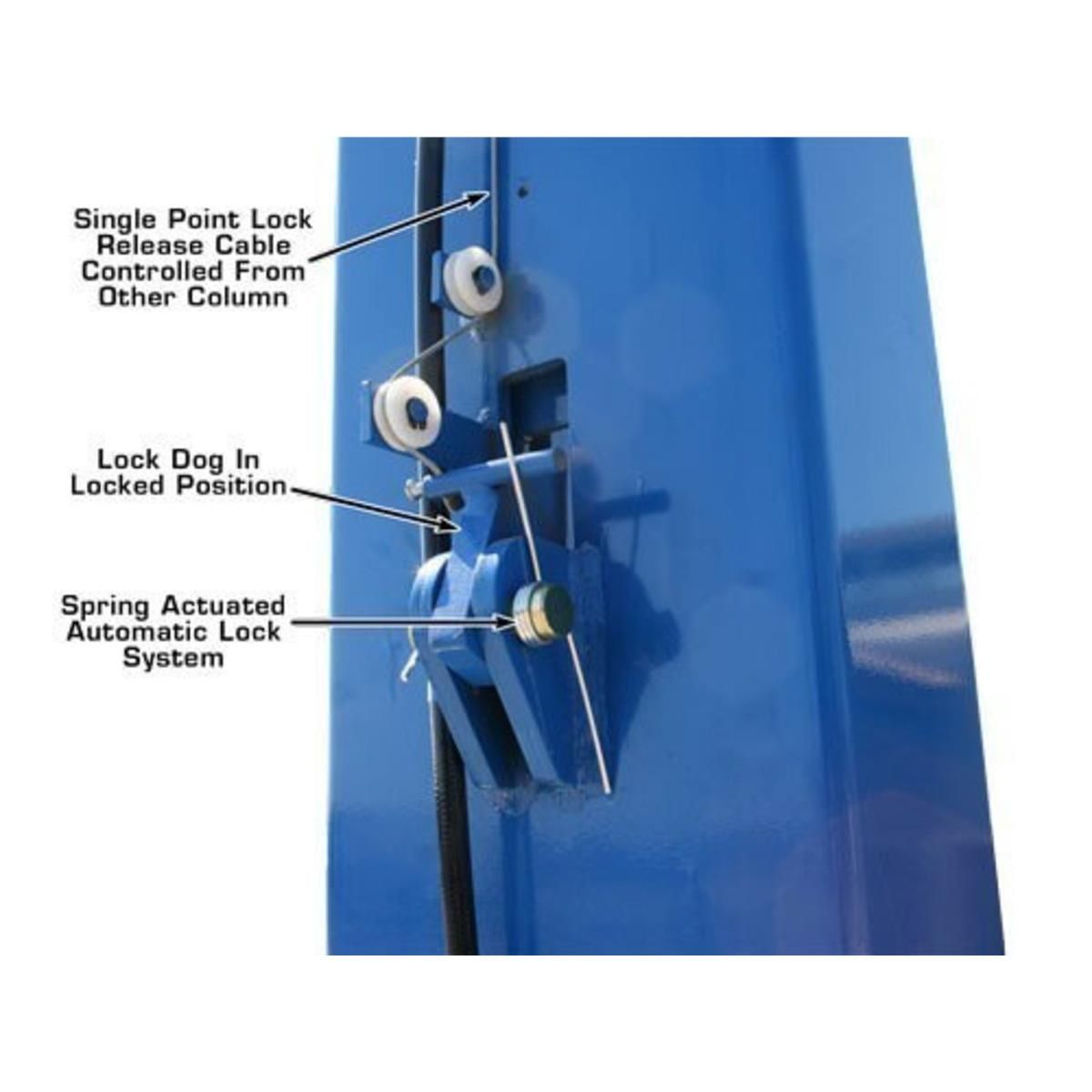

• Single Point Lock Release: Easily unlock both columns for lowering with one control.

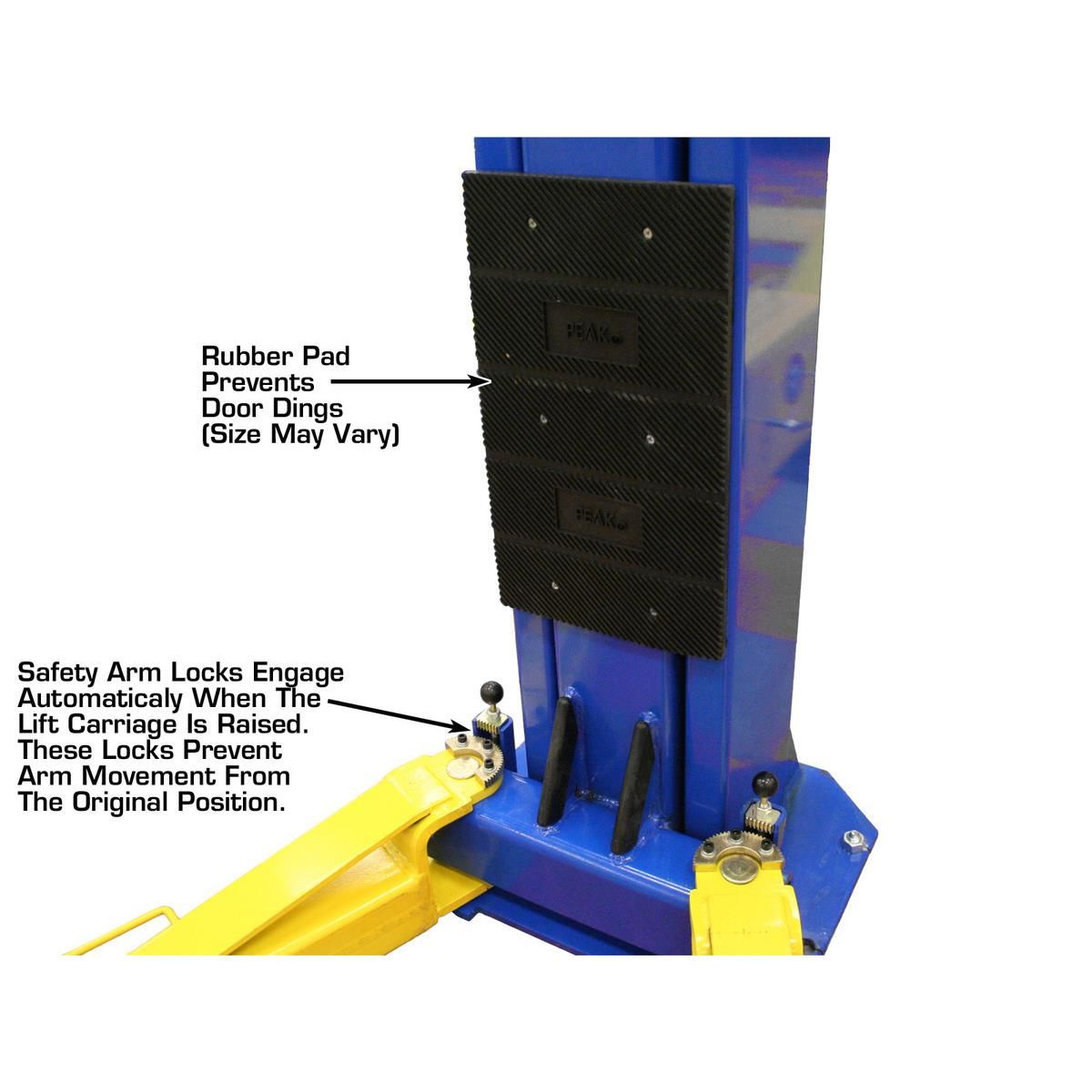

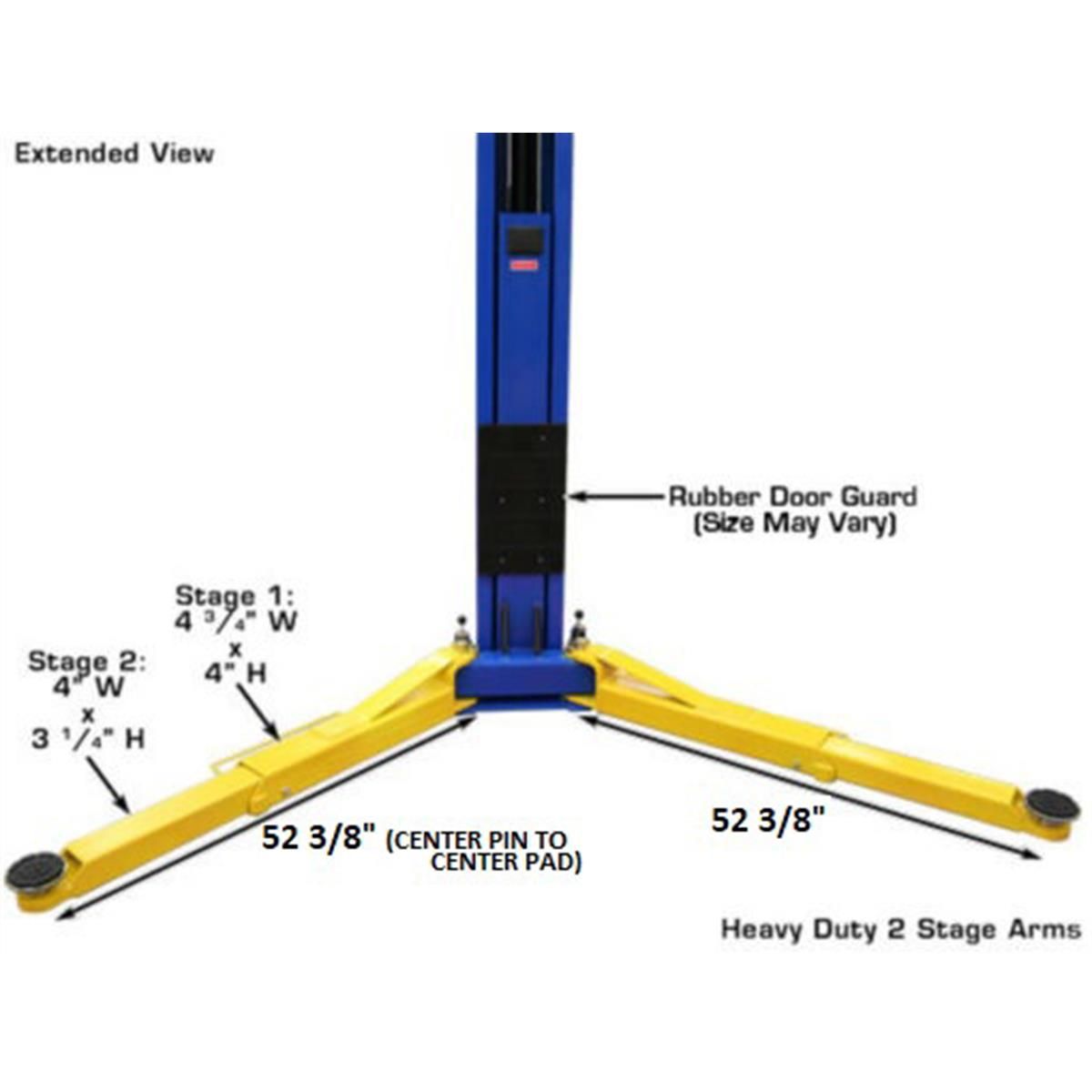

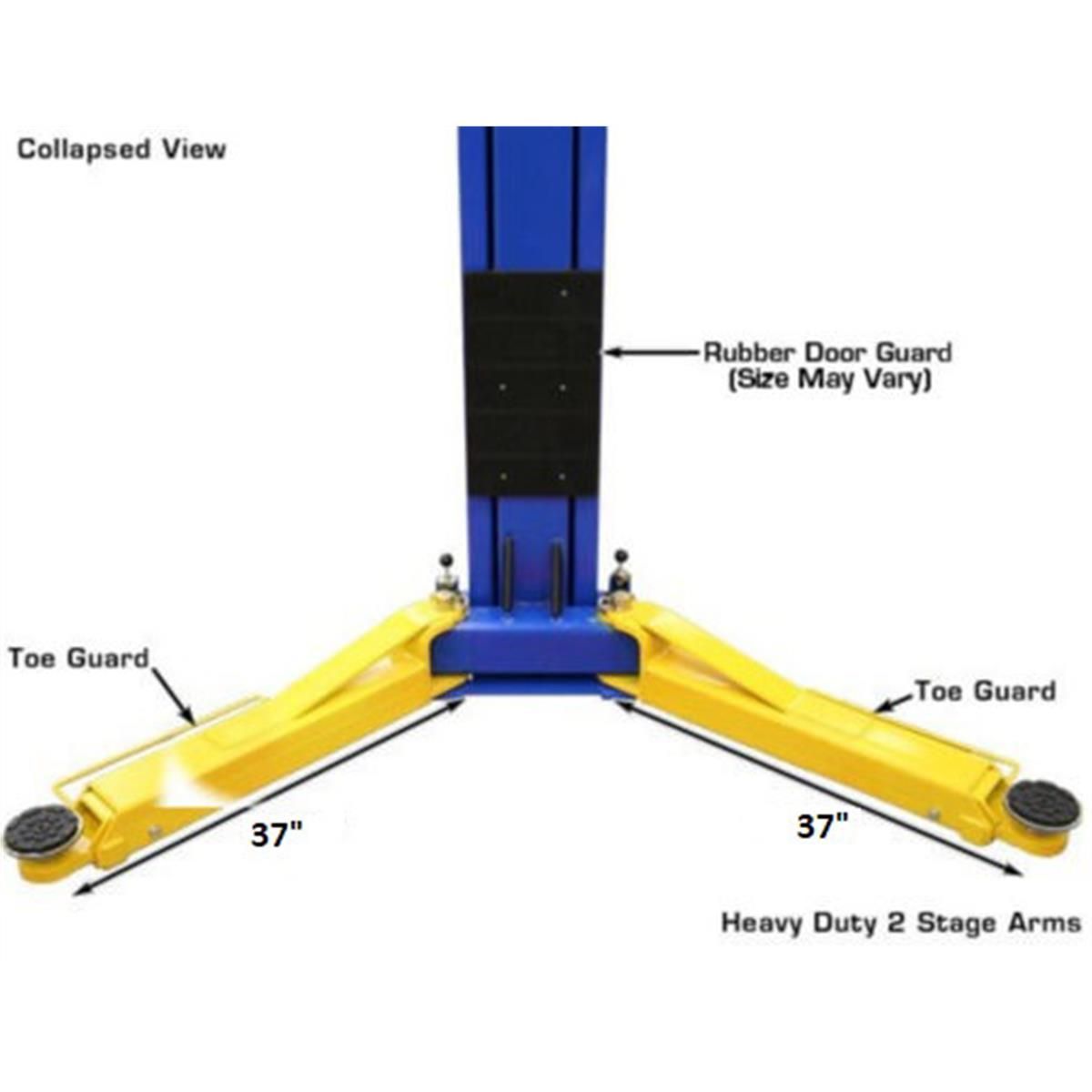

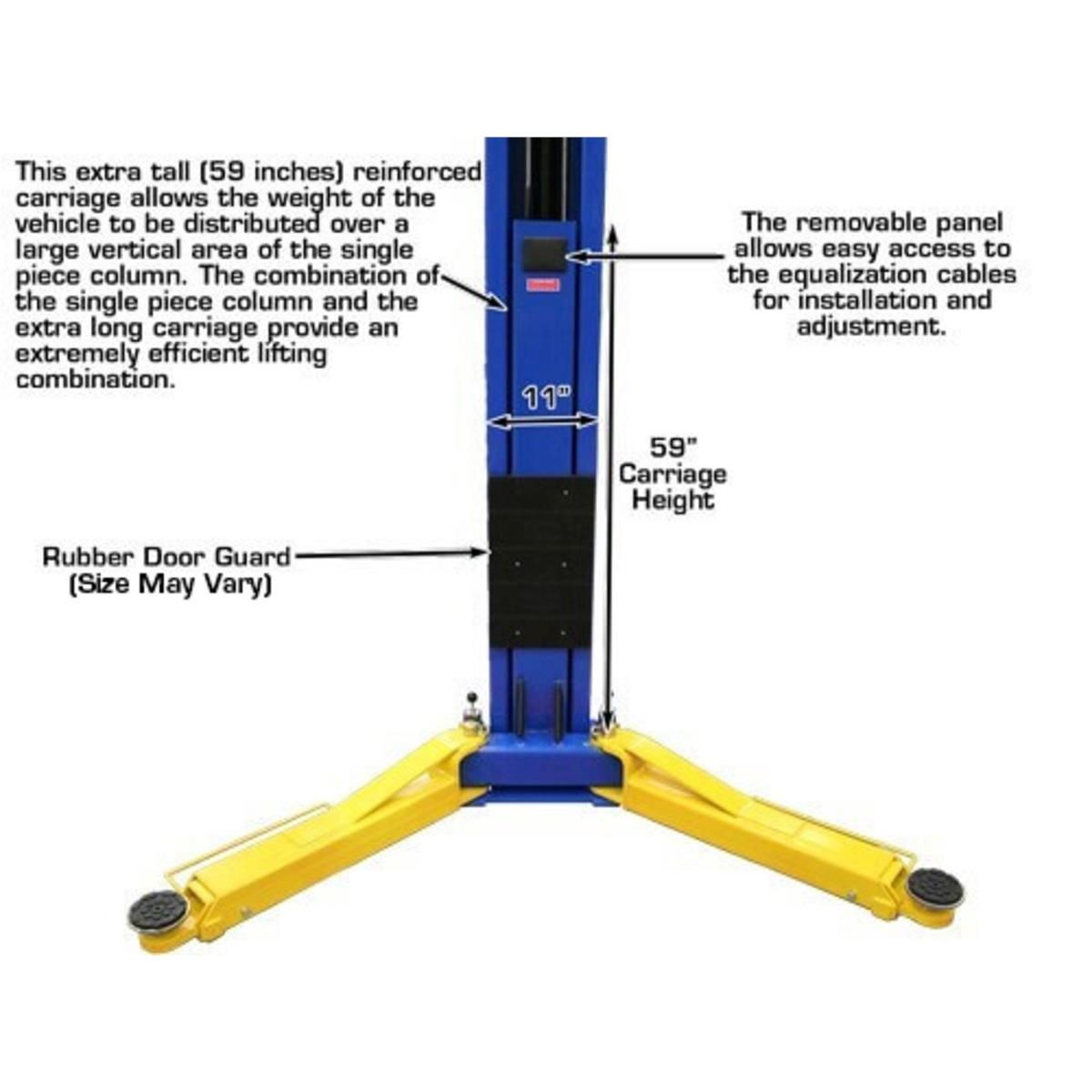

• Rubber Door Guards: Help protect vehicle doors from damage during loading/unloading.

Installation Requirements

• Minimum Ceiling Height: 13 ft

• Concrete Requirements: Minimum 4" thick, 3,000 PSI

• Power Supply: 220V Single-Phase, 30A breaker

• Professional Installation Recommended

Warranty

• Structural Warranty: 5 Years

• Hydraulic Components: 2 Years (Parts Only)

• Wear Items: 90 Days

Important Details

• Ideal for busy commercial garages and auto repair shops.

• Symmetric arms make it perfect for long wheelbase vehicles like vans and trucks.

• Designed to improve workflow with a wide drive-thru clearance and high lift range.

• Requires regular inspection and basic maintenance to ensure optimal performance.
